De-sta-co 6015-R Straight Line Action Clamp 562.02 Lb

Product Description

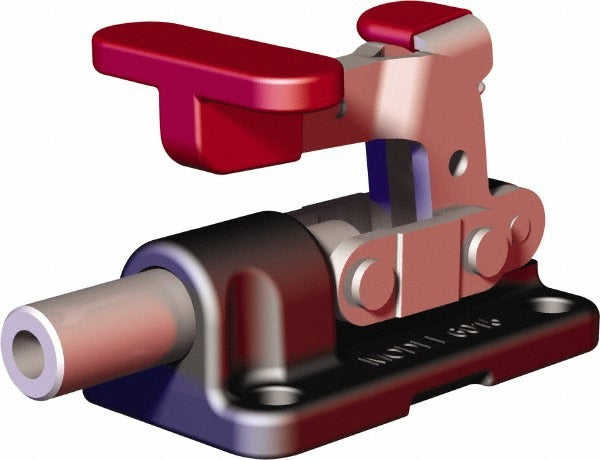

The DE-STA-CO 6015-R is a standard straight line action clamp rated for 562.02 lb (2500 N) of load capacity, designed for holding, pressing, and fixturing applications in industrial and manufacturing environments. The clamp operates with a T-handle mechanism that delivers a maximum mechanical advantage of 35:1 in both pulling and pushing directions, giving the operator controlled, repeatable clamping force with minimal effort. The plunger travels 0.7 inches and features a round, internally threaded tip sized at 1/4-20, allowing attachment of custom contact pads or noses. The body is constructed from carbon steel for durability in demanding work-holding setups. Licensed HVAC, plumbing, and electrical professionals working in fabrication or mechanical assembly contexts will find this clamp suited to benchtop and fixture-mounted applications.

The 6015-R is used in production fixtures, jigs, assembly stations, and light-press applications where a compact, inline clamping motion is required. The flanged base with four mounting holes allows direct bolting to fixture plates, machine beds, or custom tooling surfaces. With an overall length of 2.96 inches and an overall height of 1.59 inches, the clamp fits into space-constrained fixture layouts. It is well suited to repetitive-cycle production environments where consistent clamp engagement is critical.

Key Features

• 562.02 lb (2500 N) rated load capacity for reliable work-holding force
• 35:1 maximum mechanical advantage in both pulling and pushing directions
• 0.7 inch plunger travel with round, internally threaded 1/4-20 plunger tip
• Flanged base with four mounting holes for secure, bolt-down fixture mounting
• Carbon steel construction for strength in industrial environments
• T-handle design in red for quick visual identification and easy manual operation

Compatibility

Designed as an OEM-style straight line action clamp for use in standard industrial fixturing, jig-building, and work-holding applications requiring an inline plunger clamping motion with a flanged base mount.

Installation Notes

Installation is typically performed by a machinist, tooling technician, or fixture builder using standard hand tools. Mount the flanged base to a rigid fixture plate using four fasteners through the provided mounting holes, ensuring the mounting surface is flat and the clamp body is aligned with the clamping axis. Confirm the plunger travel is unobstructed and the workpiece contact point is within the 0.7 inch travel range before cycling the clamp under load. Disengage and de-energize any associated machinery before adjusting plunger tip accessories or repositioning the clamp on the fixture.
