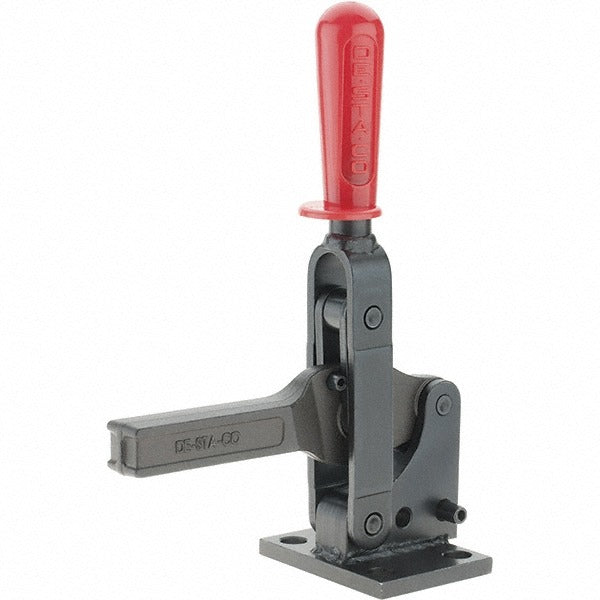

De-sta-co 5915 Hold-down Toggle Clamp 2749 Lb Vertical

Product Description

The DE-STA-CO 5915 is a heavy-duty manual hold-down toggle clamp designed for vertical clamping applications in industrial workholding, fixturing, and assembly operations. Built from forged alloy steel with an oxide finish, it delivers a rated holding capacity of 2,749.38 lb (12,230 N). The straight handle is finished in red and travels 74 degrees to actuate, while the solid bar opens 147 degrees to allow part loading and unloading. The flanged base features four mounting holes for rigid, stable attachment to fixtures, jigs, or work surfaces. This clamp is installed and serviced by machinists, tool-and-die technicians, and industrial maintenance professionals.

The 5915 is suited for production environments where repeatable, high-force workholding is required. Its vertical bar orientation makes it a standard choice for hold-down applications on machining fixtures, welding positioners, and assembly jigs. The flanged base with four bolt holes accommodates secure mounting to flat surfaces in both light and heavy manufacturing settings. The closed bar end and solid bar style provide consistent clamping contact across a range of part geometries.

Key Features

• 2,749.38 lb (12,230 N) rated holding capacity for high-force workholding
• Forged alloy steel construction with oxide finish for durability and corrosion resistance
• 147-degree bar opening for easy part loading and unloading
• 74-degree handle movement with straight red handle for positive actuation feedback
• Four-hole flanged base for rigid mounting to fixtures and work surfaces
• Solid bar with closed end provides stable, repeatable clamping contact

Compatibility

Designed as an OEM-style replacement or direct-install hold-down toggle clamp for industrial fixturing and workholding applications requiring a vertical, flanged-base, solid-bar configuration with a holding capacity up to 2,749.38 lb.

Installation Notes

Installation is performed by qualified machinists or industrial technicians. Mount the flanged base to a rigid, flat surface using four fasteners through the 0.55-inch diameter mounting holes, torquing hardware per the fixture designer's specification. Ensure the work surface and mounting fasteners are rated to handle the full clamping load before use. De-energize or lock out any associated power equipment before servicing or repositioning the clamp on an active fixture.
