De-sta-co 5910 Hold-down Toggle Clamp 1600.64 Lb Vertical

Product Description

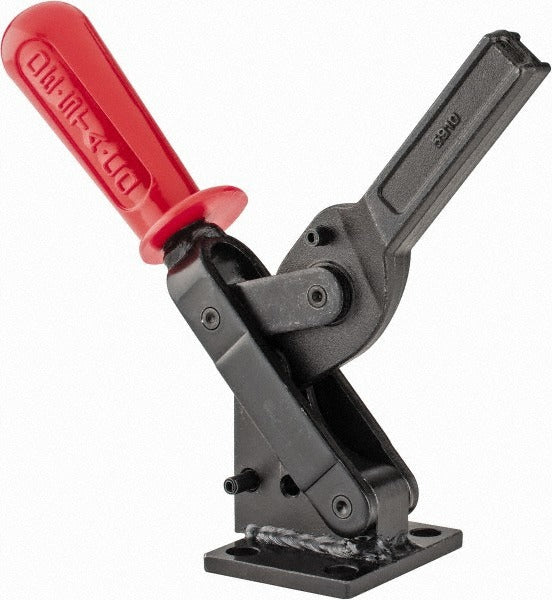

The DE-STA-CO 5910 is a manual hold-down toggle clamp built for vertical clamping applications requiring high holding force. Constructed from forged alloy steel throughout, this clamp delivers a rated holding capacity of 1,600.64 pounds (7,120 N). The solid bar design with a closed bar end provides consistent, repeatable workpiece contact across fixturing, welding, and assembly operations. A flanged base with four mounting holes makes for rigid, secure installation on jigs, fixtures, and workholding tables. The straight handle features a red finish and moves through a 71-degree arc to actuate the clamp, while the bar opens to a 132-degree angle to clear the workpiece on loading and unloading.

The 5910 is suited for industrial manufacturing environments where manual toggle clamping is required at vertical hold-down points. Typical applications include metal fabrication fixtures, welding positioners, woodworking jigs, and general assembly tooling. It is installed by toolmakers, fixture builders, and machine operators working in production and job-shop settings where consistent clamping force and fast cycle times are priorities.

Key Features

• 1,600.64 lb (7,120 N) holding capacity for demanding fixturing applications
• Forged alloy steel construction for strength and durability under repeated cycling
• Solid bar with closed end for positive, stable workpiece contact
• 132-degree bar opening for clear workpiece access during loading
• 71-degree handle movement arc for compact actuation in tight fixture layouts
• Flanged base with four mounting holes for rigid, bolt-down installation
• Oxide finish coating for corrosion resistance in shop environments

Compatibility

Designed as an OEM-style hold-down toggle clamp for use on industrial fixtures, jigs, and workholding assemblies requiring vertical clamping with a flanged-base mounting configuration.

Installation Notes

Installation is typically performed by toolmakers or fixture builders using standard drill and tap or through-bolt methods at each of the four mounting holes. Verify that the mounting surface is flat and rigid to prevent clamp misalignment under load. Confirm the workpiece height falls within the bar height under bar dimension before finalizing fixture layout. Always release clamping force and confirm the bar is fully open before loading or removing a workpiece.
