De-sta-co 535-L Toggle Clamp Vertical 2248 Lb Flanged Base

Product Description

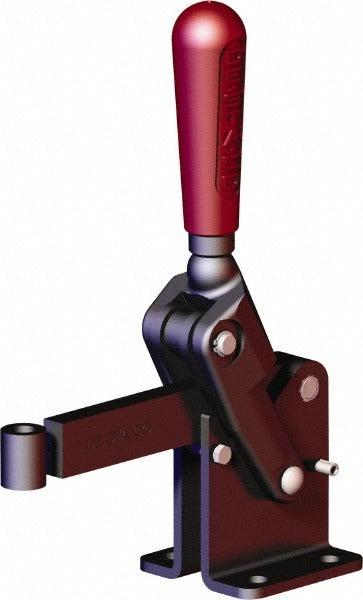

The DE-STA-CO 535-L is a manual hold-down toggle clamp designed for vertical clamping applications in industrial and manufacturing environments. Built from forged alloy steel with an oxide finish, this unit delivers a holding capacity of 2,248.09 pounds (10,000 N) through a solid, closed-end bar and flanged base mounting configuration. The straight handle travels 90 degrees to actuate the bar, which opens 120 degrees for workpiece loading and unloading. Machinists, fixture builders, and production tooling specialists install this clamp when repeatable, high-force workholding is required on jigs, fixtures, and assembly stations.

The 535-L fits into vertical hold-down applications where a flanged base allows four-point fastening to a fixture plate or tooling surface. The closed-end solid bar exerts downward clamping force directly onto the workpiece or a strap, making it well suited for welding fixtures, machining jigs, and fabrication workholding setups. The bolt retainer is included. The flanged base spans 2.13 inches in width, and the overall height of the assembled clamp is 10.35 inches, making it appropriate for medium-to-heavy-duty benchtop and floor-mounted fixture applications.

Key Features

• 2,248.09 lb (10,000 N) holding capacity for high-force workholding
• Forged alloy steel construction with oxide finish coating for durability
• 90-degree handle movement with 120-degree bar opening for fast workpiece loading
• Flanged base with four mounting holes for rigid, four-point fixture attachment
• Closed-end solid bar style for direct downward clamping pressure
• Includes bolt retainer

Compatibility

Designed as an OEM-style replacement or direct-install toggle clamp for vertical hold-down applications on industrial jigs, welding fixtures, machining fixtures, and assembly tooling stations requiring a flanged-base, four-hole mounting pattern.

Installation Notes

Installation is typically performed by tooling engineers, machinists, or fixture builders using standard fasteners through the four flanged-base mounting holes with a 0.41-inch hole diameter. Power down or de-energize any associated machinery before installing or repositioning the clamp on a fixture. Verify that the fastener torque and fixture material are rated to handle the full 2,248.09 lb clamping load. Do not exceed the rated holding capacity or use the handle as a pry point during installation.
