De-sta-co 533-L Toggle Clamp Vertical 1573.66 Lb Flanged

Product Description

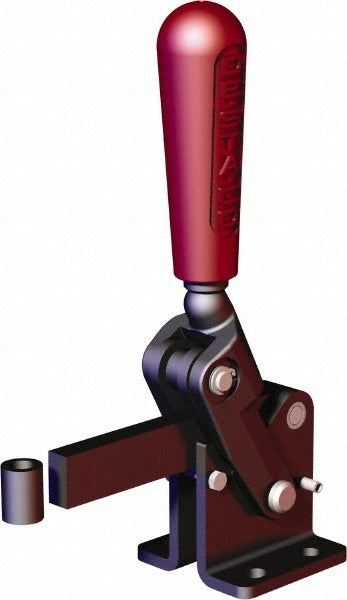

The DE-STA-CO 533-L is a manual hold-down toggle clamp designed for vertical clamping applications requiring substantial holding force. Constructed from forged alloy steel throughout, including the handle and bar, this clamp delivers a holding capacity of 1,573.66 pounds (7,000 newtons). The straight, red-handled design features 90 degrees of handle movement and 120 degrees of bar opening, enabling fast cycling in production and fixturing environments. A bolt retainer is included. The oxide finish provides baseline corrosion resistance for shop and industrial use. Machinists, toolmakers, and fixture builders typically specify this clamp for workholding setups on mills, drill presses, and assembly jigs.

The 533-L is suited for light manufacturing, fabrication shops, and industrial assembly applications where a flanged-base, solid-bar vertical clamp is required. The flanged base with four mounting holes allows secure attachment to fixtures, jigs, and work-holding tables. A closed bar end configuration keeps the bar captured during cycling. This clamp is appropriate for both production line fixtures and custom tooling builds where consistent, repeatable clamping force is needed.

Key Features

• 1,573.66 lb (7,000 N) holding capacity for demanding workholding tasks
• Forged alloy steel construction on both bar and handle for durability under repeated cycling
• 90-degree handle movement with 120-degree bar opening for fast, accessible actuation
• Flanged base with four mounting holes for rigid fixture attachment
• Closed bar end with included bolt retainer keeps bar captured and controlled
• Oxide finish applied over forged alloy steel for basic corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit component for vertical hold-down toggle clamp applications using a flanged-base, solid-bar configuration with a 1,573.66 lb capacity rating.

Installation Notes

Installation is typically performed by machinists or fixture technicians. Secure the flanged base using all four mounting holes to prevent rocking or lift under load. Verify that the mounting surface is flat and that fasteners are tightened uniformly before applying clamping loads. Always release clamping force before repositioning workpieces or servicing adjacent tooling.
