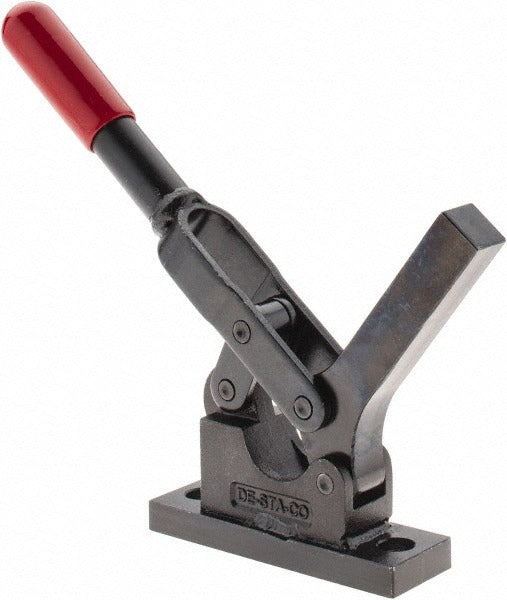

De-sta-co 5305 Toggle Clamp Horizontal 600.24 Lb Flanged Base

Product Description

The DE-STA-CO 5305 is a manual hold-down toggle clamp configured in a horizontal handle orientation with a flanged base and solid closed-end bar. It delivers a rated holding capacity of 600.24 pounds (2670 newtons), making it suitable for medium-duty workholding and fixturing applications. The clamp body and handle are forged from alloy steel with an oxide finish coating, providing durability in production environments. Bar opening is 90 degrees with 69 degrees of handle movement. Machinists, tool and die technicians, and fixture builders are the primary installers of this component.

The 5305 is used in jigs, fixtures, and workholding setups in manufacturing, fabrication, and assembly operations. The flanged base with four mounting holes and a 2.5-inch hole spacing allows for direct bolting to fixture plates, weld tables, or machine beds. The solid bar design provides a consistent clamping surface without cutouts, supporting uniform part contact. It is appropriate for both light production runs and repetitive high-cycle fixturing where a manual quick-release clamp is preferred over pneumatic alternatives.

Key Features

• 600.24 lb (2670 N) rated holding capacity for reliable medium-duty workholding
• Horizontal handle orientation with 69-degree handle movement for compact operation
• 90-degree bar opening for clear part loading and unloading
• Forged alloy steel construction with oxide finish for strength and corrosion resistance
• Flanged base with 4 mounting holes on a 2.5-inch bolt pattern for secure fixture mounting
• Solid closed-end bar with 0.51-inch bar width and 0.51-inch bar thickness for uniform clamping pressure

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in standard industrial fixturing, jig building, and workholding applications requiring a horizontal-handle, flanged-base configuration with a 600-pound capacity range.

Installation Notes

Installation is typically performed by machinists or fixture technicians using standard fasteners through the four-hole flanged base. Ensure the mounting surface is flat and rigid to maintain rated holding capacity and repeatable clamp force. Verify that the bar height clearance of 1.12 inches under bar is sufficient for the workpiece before finalizing fixture layout. Disengage the clamp fully before loading or removing workpieces to avoid bar contact injuries.
