De-sta-co 5305-B Toggle Clamp Horizontal 600.24 Lb

Product Description

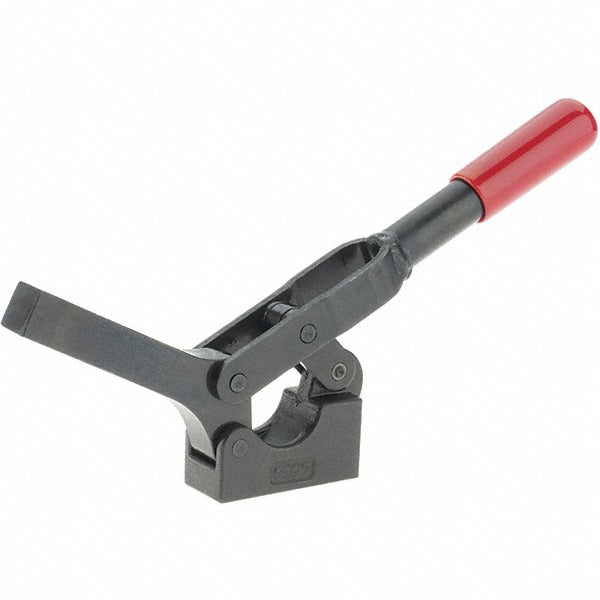

The DE-STA-CO 5305-B is a manual hold-down toggle clamp designed for horizontal clamping applications in industrial workholding, fixturing, and assembly operations. Built from forged alloy steel with an oxide finish, this clamp delivers a holding capacity of 600.24 pounds (2670 N) and features a solid bar with a closed bar end for secure, repeatable part retention. The straight handle with red coating provides clear visual identification and confident grip during operation. At 8.36 inches overall length and 1.51 inches overall height, this is a compact, low-profile unit suited for jigs, fixtures, and production tooling where consistent clamping force is critical.

The 5305-B is used in manufacturing, fabrication, and assembly environments where parts must be held firmly in place during machining, welding, or inspection. The horizontal handle orientation and solid base make it well-suited for surface-mounted fixture plates and benchtop jigs. The 90-degree bar opening allows for clear part loading and unloading, while the 69-degree handle movement keeps the operating arc predictable in tight workstation layouts. Installation is handled by machinists, toolmakers, and fixture builders working in both light and heavy industrial settings.

Key Features

• 600.24 lb (2670 N) holding capacity for demanding workholding applications
• Forged alloy steel construction with oxide finish for durability and corrosion resistance
• Horizontal handle orientation with solid base for stable, surface-mount installation
• 90-degree bar opening for efficient part load and unload cycles
• 69-degree handle movement arc suits confined fixture layouts
• Solid bar with closed end type provides consistent contact and clamping repeatability

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in standard industrial fixture and jig applications requiring horizontal clamping with a solid base mount.

Installation Notes

Installation is typically performed by toolmakers or fixture builders using standard drill-and-tap methods on fixture plates or benchtop surfaces. Secure all base mounting fasteners fully before applying clamping loads. Verify that the bar opening and handle swing arc clear all workpiece geometry and surrounding fixture components before putting the clamp into production use. Do not exceed the rated holding capacity of 600.24 pounds.
