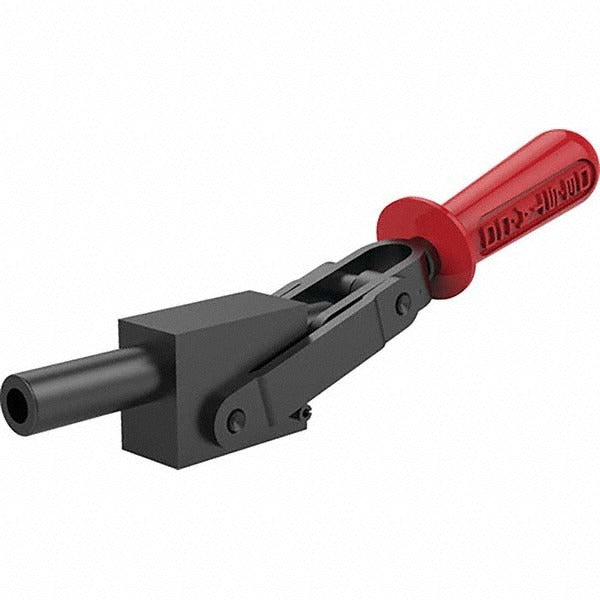

De-sta-co 5130-B Straight Line Action Clamp 5800 Lb

Product Description

The DE-STA-CO 5130-B is a standard straight line action clamp designed for high-force workholding applications in industrial and manufacturing environments. It delivers a load capacity of 5800.07 pounds (25800 N) through a round plunger with 1.75 inches of travel, making it well suited for fixturing, assembly jigs, and clamping stations where repeatable, in-line force is required. The plunger measures 1.14 inches in diameter with internal 1/2-13 thread for direct tooling attachment. The solid base and carbon steel construction provide the rigidity and durability needed under sustained production loads. A straight red handle and integrated Toggle Lock Plus mechanism are included as standard.

This clamp is used in production fixturing, welding positioners, machine tool setups, and fabrication workholding where a straight-line clamping action is preferred over swing or toggle styles. It is appropriate for both light industrial and heavy-duty manufacturing cells. The solid base allows direct surface mounting to fixture plates and tooling tables. Machinists, tool and die makers, and fixture builders are the primary installers. The internal plunger thread allows custom contact points or extensions to be fitted without additional adapters.

Key Features

• 5800.07 lb (25800 N) load capacity for heavy-duty workholding
• 1.75 inches of plunger travel for flexible part-height accommodation
• 1.14-inch diameter round plunger with internal 1/2-13 thread for tooling attachment
• Solid base style for stable, direct mounting to fixture plates
• Carbon steel construction for strength and durability in production environments
• Includes Toggle Lock Plus mechanism for positive lock retention
• Straight red handle for clear visual identification and ergonomic operation

Compatibility

Designed as an OEM-style straight line action clamp suitable for industrial fixturing, welding, and assembly workholding applications requiring in-line clamping force with a solid-base mounting configuration.

Installation Notes

Installation is typically performed by tool and die makers or fixture builders using standard machine screws through the solid base. Ensure the mounting surface is flat and the plunger centerline is aligned with the workpiece contact point before final fastening. De-energize or lock out any associated automated equipment before adjusting or replacing clamps in a live fixture. Consult applicable OSHA and machine guarding standards when integrating into automated workholding systems.
