De-sta-co 5110-R Toggle Clamp Vertical 1146.53 Lb

Product Description

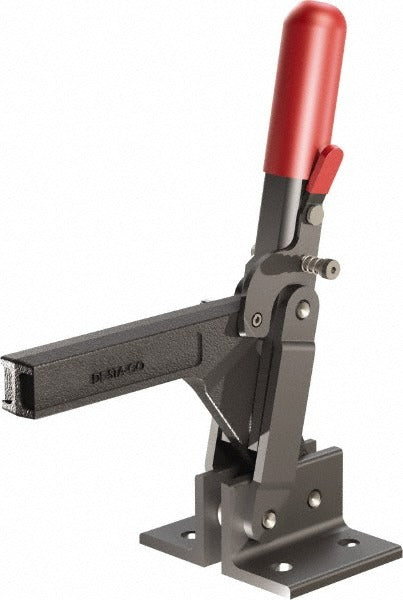

The DE-STA-CO 5110-R is a manual hold-down toggle clamp with a vertical handle orientation and a flanged base, designed for high-force workholding in fabrication, assembly, and machining applications. It delivers a holding capacity of 1,146.53 pounds (5,100 newtons) through a forged alloy steel solid bar with a closed end. The handle travels 138 degrees to lock, and the bar opens 74 degrees for part loading and unloading. The oxide finish provides basic corrosion resistance. Licensed machinists, toolmakers, and fixture builders are the primary installers of this clamp.

The 5110-R is suited for bench fixtures, jigs, welding positioners, and production workholding setups where a vertical clamping action is required. The flanged base with four mounting holes allows secure bolted attachment to fixture plates, machine tables, or fabricated base plates. The red straight handle provides a clear visual indicator of clamp status on the production floor. This clamp is appropriate for both light industrial and heavy-duty manual clamping scenarios where repeatable, positive locking is needed.

Key Features

• 1,146.53 lb holding capacity for heavy-duty workholding applications
• Forged alloy steel construction on both clamp body and handle for high-strength durability
• 138-degree handle movement with 74-degree bar opening for efficient part loading
• Flanged base with four 0.35-inch diameter mounting holes for rigid fixture mounting
• Includes Toggle Lock Plus mechanism for added security against accidental release
• Oxide finish coating provides surface protection in shop environments

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in manual workholding fixtures, jigs, and assembly tooling requiring vertical clamping action with a flanged base mount.

Installation Notes

Installation is performed by toolmakers, fixture builders, or mechanical assemblers. Mount the flanged base to a rigid surface using four fasteners through the 0.35-inch mounting holes, ensuring the base is flat and fully supported to prevent clamp body flex under load. Verify that the toggle is fully seated in the locked position before applying workholding force. Inspect the toggle lock mechanism periodically to confirm it engages correctly and shows no signs of wear or deformation.
