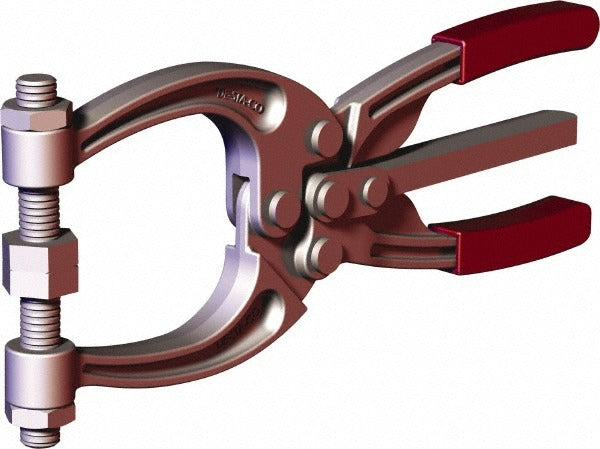

De-sta-co 462-2 C Style Plier Clamp 700 Lb

Product Description

The DE-STA-CO 462-2 is a C style plier clamp built from forged alloy steel for use in fixture, jig, and workholding applications. It delivers a load capacity of 700 pounds (3110 N) and features a maximum jaw capacity of 1.2 inches, making it suited for clamping moderate-thickness workpieces. The M10x1.50 spindle end allows precise clamping force adjustment, and the red handle provides quick visual identification on busy shop floors. Licensed HVAC, plumbing, and manufacturing technicians working in fabrication and assembly environments rely on this style of clamp to secure components during machining, welding, or inspection.

The 462-2 is intended for industrial and production workholding setups where a compact, adjustable plier clamp is required. Its 8.51-inch overall length and 2.72-inch throat depth allow it to reach into standard fixture openings. The 4.16-inch open throat height accommodates a range of part profiles, while the 1.75-inch closed throat height keeps the clamp low-profile when engaged. Two hex head spindles are included with the clamp. This tool is a standard fit for tooling rooms, assembly lines, and maintenance shops.

Key Features

• 700 lb (3110 N) load capacity for reliable clamping force in production environments
• Forged alloy steel construction for durability under repeated cycle loading
• M10x1.50 spindle end allows precise, repeatable clamping force adjustment
• 1.2-inch maximum jaw capacity accommodates a range of workpiece thicknesses
• 2.72-inch throat depth provides reach into standard fixture and jig setups
• Includes two hex head spindles for immediate installation

Compatibility

Designed as an OEM-style replacement or direct-fit addition for C style plier clamp applications requiring an M10x1.50 spindle thread and forged alloy steel construction.

Installation Notes

Installation is typically performed by tooling technicians or maintenance personnel in fabrication and assembly environments. Ensure the mounting surface and fixture are capable of handling the rated load before applying clamping force. Adjust the spindle using the included hex head spindles to set jaw capacity before final tightening. Inspect spindle threads and clamp body for wear or damage before each use cycle.
