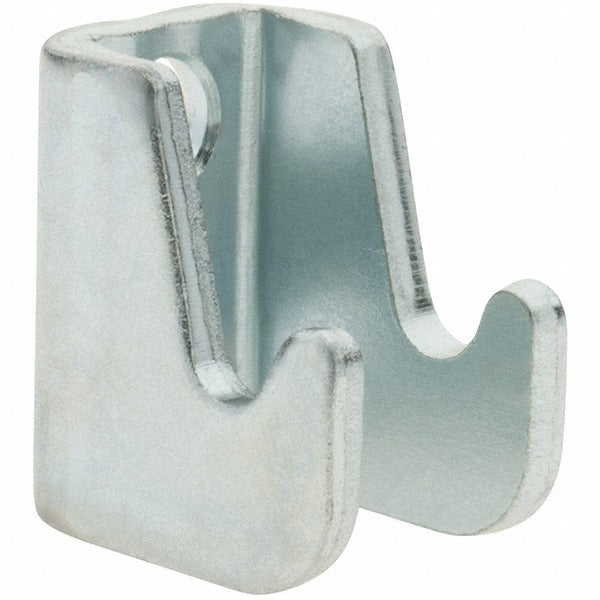

De-sta-co 331005 Clamp Latch Plate Hook Assembly

Product Description

The DE-STA-CO 331005 is a latch plate hook assembly designed for use with pull action latch clamps. Constructed from carbon steel, this hook assembly provides a rated load capacity of 720 pounds, making it suitable for demanding industrial clamping applications. The base measures 1 inch in length and 0.68 inches in width, with a mounting hole diameter of 0.27 inches. It is a direct replacement or supplemental component for De-Sta-Co 331 and 331-R series pull action latch clamps. Licensed tradespeople and industrial maintenance technicians install this hardware in fixturing, tooling, and assembly line clamping systems.

This hook assembly is used in industrial and manufacturing environments where reliable latch clamping is required. It serves as a replacement or spare part for existing De-Sta-Co 331 and 331-R pull action latch clamp installations. Typical applications include jigs, fixtures, and workholding setups found in fabrication shops, assembly facilities, and production tooling. The compact base footprint allows installation in space-constrained clamping arrangements.

Key Features

• 720-pound load capacity for heavy-duty clamping applications
• Carbon steel construction for strength and durability
• 0.27-inch mounting hole for secure fastener attachment
• Compact base: 1 inch long by 0.68 inches wide
• Mount hole center-to-center spacing of 0.56 inches
• Compatible with De-Sta-Co 331 and 331-R pull action latch clamps

Compatibility

Designed for use with De-Sta-Co 331 and 331-R pull action latch clamps as a latch plate hook assembly replacement or spare component.

Installation Notes

Installation is typically performed by industrial maintenance technicians or tooling engineers. Before servicing or replacing clamp hardware, ensure all clamping force is fully released and the clamp is in the open, unloaded position. Use fasteners appropriate for the 0.27-inch mounting hole and verify torque to the fixture manufacturer's specifications. Confirm the assembly is fully seated and secure before returning the clamp to service.
