De-sta-co 3011 Pull-action Latch Clamp 2000 Lb

Product Description

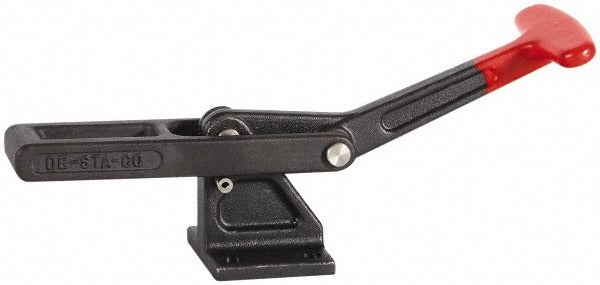

The DE-STA-CO 3011 is a horizontal pull-action latch clamp rated for 2,000 pounds of load capacity. It uses a U-hook bar style to secure workpieces or fixtures in place through a pulling motion, making it well suited for applications where a positive latch is required. The body and base are constructed from carbon steel for durability in industrial environments. A red whale tail handle provides a clear grip point for fast, repeatable actuation. With an overall length of 9.28 inches and a drawing movement of 3 inches, this clamp delivers firm holding force in a compact envelope. Installation and adjustment are handled by maintenance technicians, tooling specialists, and fixture builders.

The DE-STA-CO 3011 is used in horizontal clamping applications on production fixtures, weld tooling, assembly jigs, and material handling equipment. The flanged base allows direct mounting to flat plates or fixture surfaces using standard fasteners through the 0.33-inch diameter mounting holes. The U-hook bar engages a receiver or bar on the opposing surface to draw the joint closed and hold it under load. This clamp is common in manufacturing facilities where quick-release clamping is needed at a fixed station.

Key Features

• 2,000 lb load capacity for heavy-duty fixture and tooling applications
• Horizontal pull-action design provides positive latch engagement
• U-hook bar style with 0.71-inch bar width for reliable hook engagement
• Whale tail handle in red for high-visibility, ergonomic actuation
• Flanged base with 1.25-inch length and 1.78-inch width between mounting holes for secure attachment
• Carbon steel construction throughout for strength and wear resistance

Compatibility

Designed as a direct-fit replacement or new-installation latch clamp identified by industry number 3011, suitable for horizontal pull-action clamping setups that accept a flanged-base U-hook clamp with a 3-inch drawing movement.

Installation Notes

Installation is typically performed by tooling technicians or maintenance personnel using standard hand tools. The flanged base should be mounted to a rigid, flat surface using appropriately sized fasteners through the provided mounting holes. Ensure the mating receiver or hook bar is properly aligned with the U-hook before applying clamping load. De-energize or lock out any powered equipment before servicing or repositioning clamps on active fixtures.
