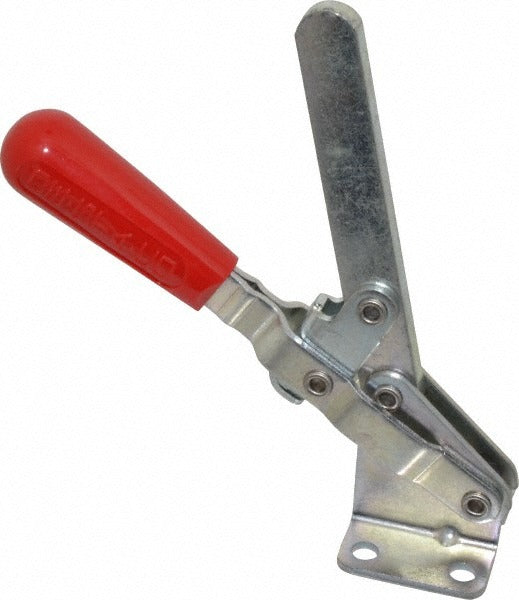

De-sta-co 210-S Toggle Clamp Vertical 750 Lb Flanged Base

Product Description

The DE-STA-CO 210-S is a manual hold-down toggle clamp designed for vertical clamping applications in industrial, manufacturing, and fabrication environments. It delivers a 750 lb holding capacity and features a solid bar with a closed bar end, mounted on a flanged base with four mounting holes. The handle moves through 58 degrees of arc to lock and release, while the bar opens to 103 degrees for workpiece access. The body, handle, and bar are all carbon steel with a zinc finish coating. A licensed machinist, tool-and-die technician, or fixturing professional is the typical installer.

The 210-S fits workholding fixtures, assembly jigs, welding positioners, and machining setups where a repeatable vertical hold-down force is required. The flanged base allows direct surface mounting to fixture plates or tables using four bolts through 0.33-inch diameter mounting holes. The straight red handle provides a clear visual indicator of clamp state. It is suited for both light-production and toolroom applications where carbon steel construction and a zinc coating provide adequate corrosion resistance for indoor environments.

Key Features

• 750 lb holding capacity for reliable workpiece retention in production fixtures
• 58-degree handle movement for fast, low-effort locking and release cycles
• 103-degree bar opening provides clear access for loading and unloading parts
• Flanged base with four 0.33-inch mounting holes for secure surface attachment
• Solid closed-end bar with 3/8-16 spindle thread for adjustable clamping height
• Carbon steel body with zinc finish coating and bolt retainer included

Compatibility

Designed as an OEM-style hold-down toggle clamp for vertical fixturing applications on standard fixture plates and workholding tables. Spindle thread size is 3/8-16, accepting standard compatible spindle hardware.

Installation Notes

Install using four fasteners through the flanged base mounting holes; verify the base is fully seated and fasteners are secured before applying clamping load. Adjust the spindle to set the correct clamping height before placing the assembly into service. De-energize or lock out any powered equipment in the work area before servicing or repositioning the clamp. Consult applicable OSHA and machine-guarding standards when integrating toggle clamps into production fixtures.
