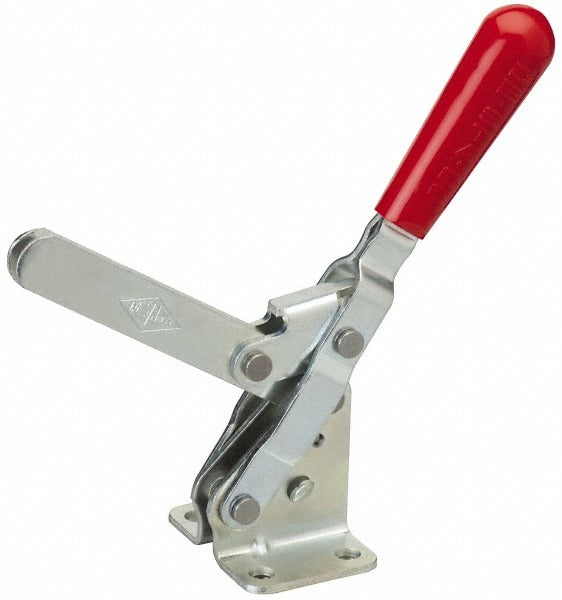

De-sta-co 210-21 Toggle Clamp Vertical 750 Lb Flanged Base

Product Description

The DE-STA-CO 210-21 is a manual hold-down toggle clamp with a vertical handle orientation and a flanged base, designed for workholding, fixturing, and clamping applications in manufacturing, fabrication, and assembly operations. It delivers a 750 lb holding capacity and features a solid bar with a closed bar end for secure, repeatable part retention. The carbon steel construction with a zinc finish coating provides corrosion resistance in general industrial environments. A straight red handle with 58 degrees of handle movement and 103 degrees of bar opening allows fast, positive actuation. Licensed machinists, toolmakers, and production floor technicians are the primary installers.

The 210-21 is suited for use in jigs, fixtures, and work-holding setups on machine tools, welding tables, and assembly stations. Its flanged base with four mounting holes makes it straightforward to bolt down to flat fixture plates or tool tables. The 3/8-16 spindle thread allows vertical clamping height adjustment to accommodate varying workpiece thicknesses. The bolt retainer is included in the package.

Key Features

• 750 lb holding capacity for reliable workpiece retention in production environments
• Vertical handle orientation with 58 degrees of handle movement for quick open-and-close cycling
• 103-degree bar opening provides generous clearance when loading and unloading parts
• Flanged base with four 0.33-inch diameter mounting holes for rigid fixture mounting
• 3/8-16 spindle thread with a 3.25-inch spindle length for adjustable clamping height
• Zinc-coated carbon steel construction for durability and corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit addition for standard toggle clamp fixture setups requiring a vertical, flanged-base hold-down clamp with a 750 lb holding capacity.

Installation Notes

Installation is performed by machinists, toolmakers, or fixture builders using standard hand tools. Secure the flanged base to a flat, rigid fixture surface through the four mounting holes before applying clamping loads. Adjust the spindle to set the correct clamping height before final lockdown. Verify the clamp is fully engaged in the over-center locked position before machining or welding operations begin.
