De-sta-co 207-TUL Toggle Clamp 375.43 Lb Vertical

Product Description

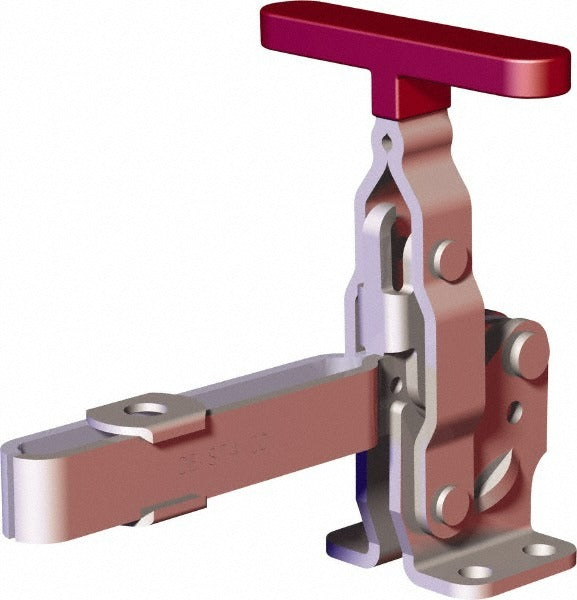

The DE-STA-CO 207-TUL is a manual hold-down toggle clamp designed for vertical clamping applications in workholding, fixturing, and assembly operations. It delivers a holding capacity of 375.43 pounds (1670 N) through a T-handle mechanism that moves through 57 degrees of arc, locking a U-bar with a closed end over a workpiece. The flanged base provides four-point mounting for rigid attachment to jigs, fixtures, and welding tables. The clamp body and handle are both constructed from carbon steel, making the unit suitable for demanding industrial and fabrication environments. The spindle travels 2.94 inches from open to locked position.

The 207-TUL is suited for use in manual assembly stations, metal fabrication jigs, woodworking fixtures, and quality-control hold-down applications where repeatable, quick-release clamping is required. The vertical handle orientation keeps the T-handle clear of the workpiece during loading and unloading. The U-bar opening of 99 degrees provides generous clearance for part placement. Flanged washers are included for proper load distribution at the mounting holes.

Key Features

• 375.43 lb (1670 N) holding capacity for reliable workpiece retention
• T-handle with 57-degree handle movement for quick lock and release
• U-bar with closed end and 99-degree bar opening for broad workpiece access
• Four-hole flanged base for rigid, stable mounting to fixtures and tables
• Carbon steel construction on both body and handle for durability in industrial environments
• Flanged washers included for proper load distribution at mount points

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in standard vertical clamping fixture applications requiring a flanged base mount and U-bar bar style.

Installation Notes

Installation is performed by machinists, toolmakers, or fixture builders using standard hand tools. Mount the flanged base to a flat, rigid surface using four fasteners through the 0.28-inch diameter mounting holes, using the included flanged washers to distribute clamping load. Ensure the mounting surface is clean and flat before securing the clamp. Verify that the bar opening and spindle travel provide adequate clearance for the intended workpiece before final mounting.
