De-sta-co 207-TU Hold-down Toggle Clamp 375 Lb

Product Description

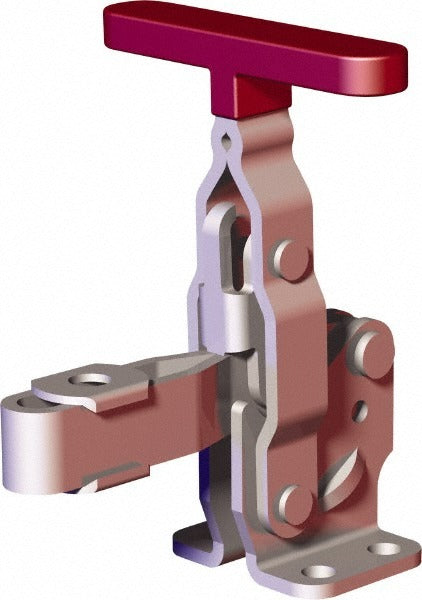

The DE-STA-CO 207-TU is a manual hold-down toggle clamp designed for vertical clamping applications in fixturing, welding, assembly, and machining setups. It features a U-bar with a closed bar end and a T-handle oriented vertically, giving technicians positive mechanical lock-down with a holding capacity of 375.43 pounds (1,670 newtons). The flanged base mounts through four holes and includes flanged washers for secure installation. The carbon steel construction handles the demands of industrial and production environments. Spindle travel measures 1.3 inches, and the bar opens to 99 degrees, allowing workpiece loading without interference from the clamp arm.

This clamp is suited for use in jig and fixture work, welding positioners, drill press tables, and repetitive-production clamping stations where a consistent hold-down force is required. The vertical handle orientation and 57-degree handle movement arc keep the operator's hand clear of the work surface during clamping and release cycles. The red T-handle provides a clear visual indicator of clamp position on the fixture. It is commonly installed in light-to-medium industrial manufacturing lines, custom fabrication shops, and quality-control inspection fixtures.

Key Features

• 375.43 lb (1,670 N) holding capacity for reliable workpiece retention
• Vertical handle orientation with 57-degree handle movement arc
• U-bar with closed bar end and 99-degree bar opening for easy workpiece loading
• Flanged base with four mounting holes; flanged washers included
• Carbon steel body and handle for industrial durability
• 1.3-inch spindle travel with maximum mechanical advantage of 4:1 to 6:1

Compatibility

Designed as a direct-mount hold-down toggle clamp for use in standard fixturing, welding, and assembly jigs requiring a vertical U-bar configuration with a flanged base footprint.

Installation Notes

Installation is typically performed by machinists, toolmakers, or fixture builders using standard hand tools. The flanged base requires four mounting holes; verify that the base hole pattern and mounting surface material are compatible before drilling. Always confirm the workpiece load does not exceed the rated holding capacity of 375.43 pounds. Inspect toggle linkage and spindle for wear or deformation before returning any clamp to service after impact or overload.
