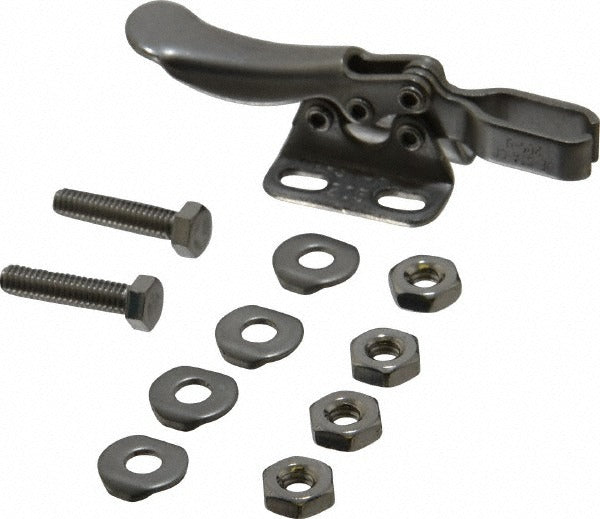

De-sta-co 205-USS Toggle Clamp 75 Lb U-bar Flanged Base

Product Description

The DE-STA-CO 205-USS is a manual hold-down toggle clamp designed for workholding and fixturing applications where consistent clamping force and compact size are priorities. It features a horizontal handle orientation, a U-bar with a fixed spindle, and a flanged base for secure four-hole mounting. Rated at 75 pounds (340 N) of holding capacity, it is built from stainless steel throughout for corrosion resistance. The handle travels 80 degrees and the bar opens 90 degrees, providing reliable over-center locking in a package that measures just 2.71 inches in overall length and 0.67 inches in overall height.

This clamp is suited for light-duty fixturing, jigs, and workholding setups in manufacturing, assembly, and fabrication environments. Its compact footprint and flanged base make it appropriate for installations where mounting space is limited. The 8-32 fixed spindle allows for fine height adjustment, and the included hardware consists of one spindle, two nuts, and two washers. Machinists, toolmakers, and assembly technicians are the typical installers for this type of clamp.

Key Features

• 75 lb (340 N) holding capacity with over-center locking action
• Horizontal handle orientation with 80-degree handle movement
• U-bar style with 90-degree bar opening and fixed spindle end
• Full stainless steel construction with zinc finish coating for corrosion resistance
• Flanged base with four mounting holes for stable, rigid attachment
• 8-32 spindle thread with 0.37-inch spindle travel for precise height setting

Compatibility

Designed as an OEM-style replacement or direct-fit toggle clamp for light-duty horizontal hold-down applications requiring a flanged base, U-bar, and 8-32 fixed spindle configuration.

Installation Notes

Installation is performed by machinists or assembly technicians using standard hand tools. Mount through all four base holes to ensure stable clamping performance and prevent base flex under load. Verify spindle height adjustment and confirm over-center lock engagement before applying workpiece pressure. Do not exceed the rated 75 lb holding capacity.
