De-sta-co 205-SSS Toggle Clamp 75 Lb Horizontal

Product Description

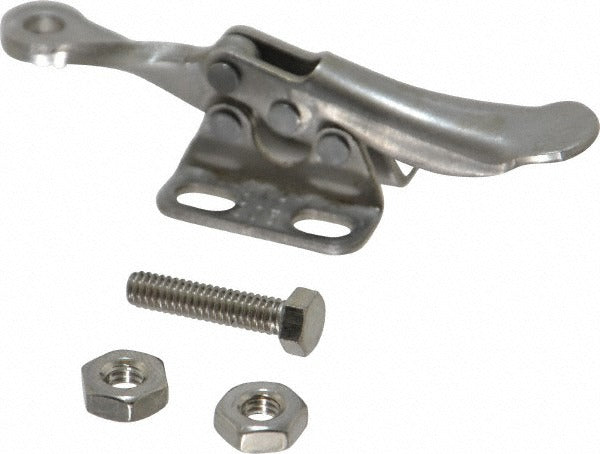

The DE-STA-CO 205-SSS is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a compact, corrosion-resistant solution. Built entirely from stainless steel, it delivers a 75 lb (340 N) holding capacity through a solid bar with a fixed spindle end. The flanged base provides a stable four-hole mounting footprint, and the straight handle travels through 82 degrees of arc to lock the bar through a 94-degree opening range. At 2.85 inches overall length and 0.67 inches overall height, it fits into tight fixture layouts. Machinists, toolmakers, and fixture builders install this clamp on jigs, assembly fixtures, and workholding setups.

The 205-SSS suits light-duty horizontal hold-down applications in industrial, food processing, and marine environments where moisture or chemical exposure rules out standard carbon steel hardware. Its compact footprint and low profile make it well suited for multi-clamp fixture plates and production tooling where clearance is limited. The stainless steel construction also makes it a common choice for cleanroom and sanitary fixture assemblies.

Key Features

• 75 lb (340 N) holding capacity for light-duty clamping tasks
• Full stainless steel construction resists corrosion in wet or chemical environments
• Flanged base with four mounting holes for secure, rigid fixture attachment
• Solid bar with fixed spindle end and included 8-32 spindle, plus two nuts
• 82-degree handle movement and 94-degree bar opening for fast, repeatable actuation
• Low overall height of 0.67 inches suits tight-clearance fixture layouts

Compatibility

Designed as an OEM-style hold-down toggle clamp for use on industrial jigs, assembly fixtures, and workholding plates requiring a horizontal, flanged-base, solid-bar clamp with a 75 lb capacity rating.

Installation Notes

Installation is typically performed by machinists or fixture builders using standard hand tools. Mount the flanged base to a rigid fixture plate through all four mounting holes before applying any clamping load. Confirm the spindle adjustment provides proper workpiece contact before locking down the handle. Inspect the toggle linkage periodically for wear, especially in high-cycle production environments.
