De-sta-co 205-SL Toggle Clamp 60 Lb Horizontal

Product Description

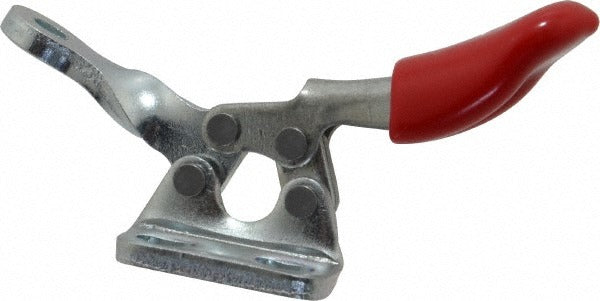

The DE-STA-CO 205-SL is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a solid bar and a left flanged base. Built from carbon steel with a zinc finish coating, this compact clamp delivers a holding capacity of 60 pounds (265 N) in a package that measures just 2.85 inches in overall length and 0.67 inches in overall height. The straight handle moves through 82 degrees to lock the bar, which opens 94 degrees for part loading and unloading. It is sized for fixturing, jigs, and workholding setups where a low-profile, repeatable clamp is needed on a production line or fabrication bench.

The 205-SL is suited for light-duty workholding in manufacturing, assembly, and machining environments. Its left flanged base with two mounting holes spaced 0.62 inches apart allows direct bolting to fixture plates or work surfaces. The fixed spindle bar end and M4x0.7 spindle thread accommodate fine vertical adjustment for consistent part contact. Machinists, fixture builders, and production technicians typically specify this clamp where minimal footprint and reliable clamping force are priorities.

Key Features

• 60 lb (265 N) holding capacity for light-duty workholding applications
• Horizontal handle orientation with 82-degree handle travel for smooth actuation
• 94-degree bar opening for easy part loading and removal
• Left flanged base with two mounting holes for direct fixture-plate mounting
• Carbon steel construction with zinc finish coating for corrosion resistance
• M4x0.7 fixed spindle with included spindle and two nuts for height adjustment

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in standard fixture plates, jigs, and assembly workholding setups requiring a horizontal, left flanged, solid-bar clamp configuration.

Installation Notes

Install using the two provided mounting holes, which accept fasteners through 0.16-inch diameter holes. Power down or de-energize any associated automated equipment before mounting or adjusting the clamp. Use appropriate hand tools to secure mounting fasteners and to set spindle height before placing into service. Verify that the clamp locks fully into the over-center position before applying workholding loads.
