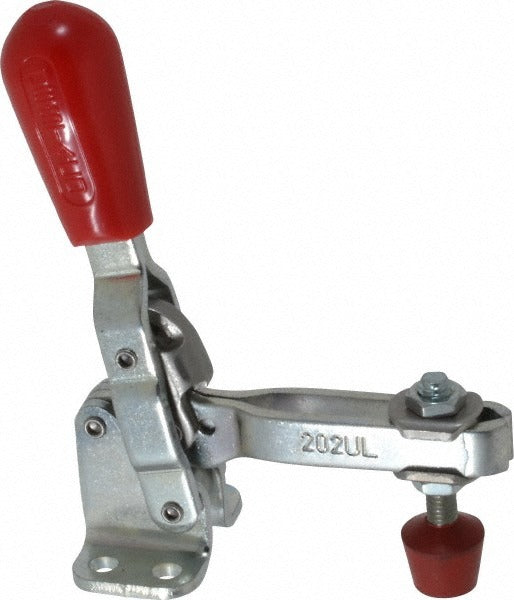

De-sta-co 202-UL Toggle Clamp Vertical 200 Lb U-bar

Product Description

The DE-STA-CO 202-UL is a manual hold-down toggle clamp with a vertical handle orientation, U-bar style bar, and a flanged base designed for secure workpiece clamping in production and fabrication environments. Built from carbon steel with a zinc finish coating, it delivers a holding capacity of 200 pounds (890 N) and features a 105-degree bar opening with a 65-degree handle movement arc. The spindle threads at 1/4-20 with 1.54 inches of spindle travel, allowing fine adjustment of clamping force. Licensed tradespeople, machinists, and fixture builders install this clamp in jigs, fixtures, and assembly workholding setups where repeatable, positive clamping is required.

The 202-UL is suited for light-duty industrial and workshop applications requiring a compact vertical-action toggle clamp. Its flanged base with four mounting holes provides stable, bolt-down mounting to fixture plates, welding tables, and fabrication jigs. The open-end U-bar accommodates a range of workpiece profiles. The unit ships with two flanged washers, two nuts, and a spindle, making it ready for immediate installation without additional hardware. Overall dimensions keep the footprint compact at 2.51 inches in length and 4.33 inches in overall height, fitting into tight fixture layouts.

Key Features

• 200 lb (890 N) holding capacity for reliable workpiece retention in production fixtures
• Vertical handle orientation with 65-degree handle movement for ergonomic actuation in confined spaces
• 105-degree bar opening for fast loading and unloading of workpieces
• 1/4-20 spindle thread with 1.54 inches of travel for precise clamping force adjustment
• Flanged base with four mounting holes for rigid, bolt-down installation
• Carbon steel construction with zinc finish coating for durability and corrosion resistance
• Includes flanged washers, nuts, and spindle - no additional hardware required at install

Compatibility

Designed as an OEM-style replacement or direct-use hold-down toggle clamp for standard fixturing, jig-building, and workholding applications requiring a vertical-action, flanged-base clamp with a U-bar and 200 lb holding capacity.

Installation Notes

Installation is typically performed by machinists, fixture builders, or maintenance technicians using standard hand tools. Mount the flanged base to a flat, rigid surface through the four provided mounting holes using appropriately rated fasteners for the application load. Ensure the workpiece and fixture are fully de-energized or at rest before actuating or adjusting the clamp. Do not exceed the rated 200 lb holding capacity, and verify spindle adjustment is locked before placing the assembly into service.
