De-sta-co 202-U Toggle Clamp Vertical 200 Lb U-bar

Product Description

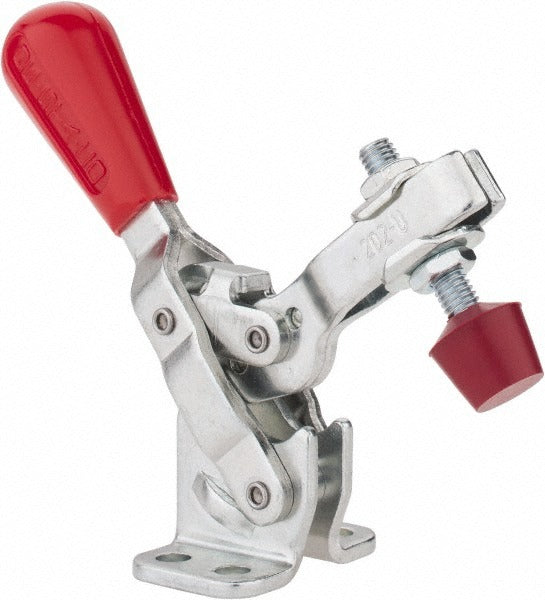

The DE-STA-CO 202-U is a manual hold-down toggle clamp with a vertical handle orientation and a U-bar spindle design, built for workholding applications in fabrication, assembly, and machining operations. Rated at 200 lb (890 N) of holding capacity, it delivers repeatable clamping force through a straight red handle with 65 degrees of handle movement and 105 degrees of bar opening. The body and handle are carbon steel with a zinc finish coating, providing corrosion resistance for shop and light industrial environments. Licensed HVAC techs and machinists alike recognize this style of clamp for its fast, one-hand actuation and reliable over-center locking action. The flanged base accepts four mounting fasteners for secure fixture mounting.

The 202-U suits tooling plates, jigs, fixtures, and welding positioners where consistent vertical clamping pressure is required. Its compact footprint makes it practical for multi-clamp fixture layouts. The fixed spindle with a 1/4-20 thread allows precise height adjustment to accommodate workpiece variation, with 0.98 inches of spindle travel. This clamp is appropriate for light-duty production workholding in manufacturing, metal fabrication, and woodworking shops. It ships with two flanged washers, two nuts, and the spindle included.

Key Features

• 200 lb (890 N) holding capacity with over-center locking for positive, vibration-resistant clamping
• U-bar design with fixed spindle and 1/4-20 thread for adjustable clamping height
• 0.98 inches of spindle travel for workpiece height variation
• 65-degree handle movement and 105-degree bar opening for fast, clear part loading and unloading
• Flanged base with four mounting holes for rigid fixture attachment
• Zinc-finish carbon steel construction for durability in shop environments

Compatibility

Designed as an OEM-style replacement or direct-fit toggle clamp for standard vertical hold-down fixture applications requiring a flanged base, U-bar spindle, and 1/4-20 spindle thread.

Installation Notes

Installation is performed by toolmakers, fixture builders, or machinists using standard hand tools. Mount the flanged base to a flat tooling surface using the four provided mounting holes, each sized for a 0.22-inch diameter fastener. Verify spindle height adjustment and lock the spindle nuts before placing the clamp into service. Confirm the clamp reaches full over-center position under load before relying on it for production workholding.
