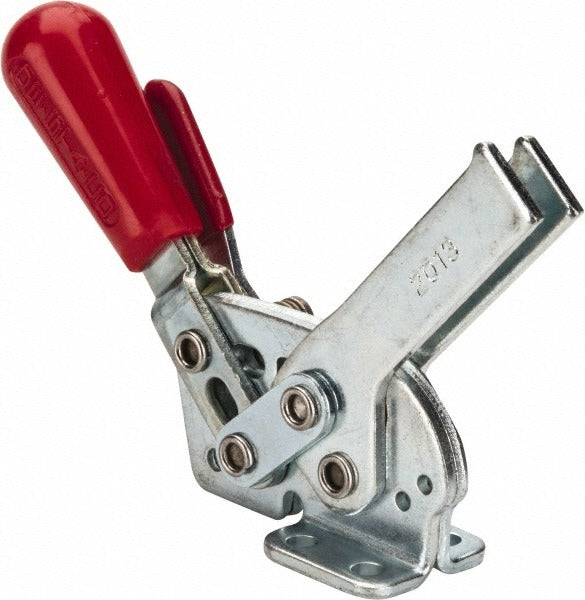

De-sta-co 2013-UR Toggle Clamp 295 Lb U-bar Flanged

Product Description

The DE-STA-CO 2013-UR is a manual hold-down toggle clamp designed for horizontal clamping applications requiring a rated holding capacity of 295 pounds (1,310 N). Built from carbon steel with a zinc finish coating, it features a U-bar with a fixed spindle end and a straight red handle. The flanged base provides four-hole mounting for secure fixture attachment. Handle travel is 58 degrees with a bar opening of 71 degrees, allowing controlled workpiece engagement and release. This clamp ships with one spindle, two nuts, and two washers included. It is sized for compact fixture setups where low-profile clamping force is required.

The 2013-UR is suited for use in welding fixtures, machining jigs, assembly stations, and light fabrication setups where a horizontal hold-down clamp is needed. Its small footprint - with an overall length of 5.87 inches and an overall height of 2.02 inches - makes it well suited to benchtop tooling and tight fixture layouts. The flanged base mounts directly to fixture plates or welding tables. Installation is handled by machinists, toolmakers, fixture builders, and production technicians working in manufacturing and fabrication environments.

Key Features

• 295 lb (1,310 N) rated holding capacity for reliable workpiece retention
• Horizontal handle orientation with 58-degree handle movement
• 71-degree bar opening for fast workpiece loading and unloading
• U-bar style with fixed spindle end and M5x0.8 spindle thread
• Flanged base with four mounting holes for rigid fixture attachment
• Carbon steel construction with zinc finish coating for corrosion resistance
• Includes spindle, two nuts, and two washers for complete installation

Compatibility

Designed as an OEM-style hold-down toggle clamp for use in horizontal clamping fixture applications requiring a flanged base and U-bar style bar with a fixed spindle.

Installation Notes

Installation is typically performed by machinists or fixture builders using standard hand tools. Mount the flanged base to a fixture plate using four fasteners through the 0.17-inch diameter mounting holes before positioning the workpiece. Verify the spindle is adjusted and locked to the correct height before applying clamping force. Do not exceed the rated holding capacity of 295 pounds during operation.
