De-sta-co 201208-M M4 Cap Tip Clamp Spindle Assembly

Product Description

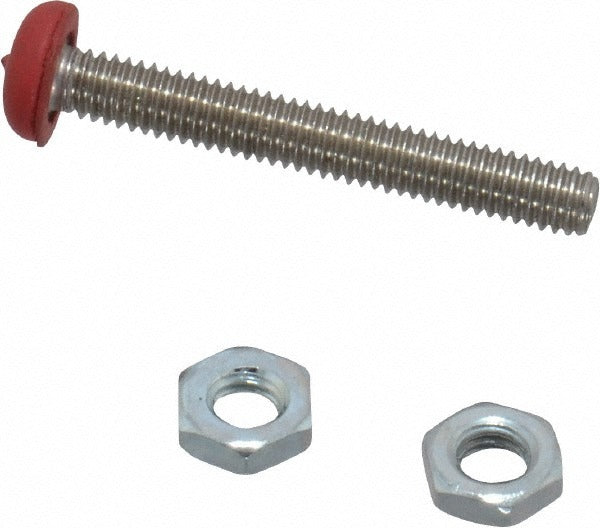

The DE-STA-CO 201208-M is an M4 threaded cap tip clamp spindle assembly designed for use with manually operated toggle clamps. The spindle body is carbon steel with an M4 thread and a thread length of 1.18 inches. The overall assembly length is 1.26 inches (32 mm). The tip cap is neoprene with a flat profile, a tip surface diameter of 0.28 inches, and a tip maximum diameter of 0.315 inches (8 mm). Tip cap hardness is rated at 80-85A Shore. Jam nuts are included. This assembly is a direct replacement or service component for toggle clamp spindles requiring M4 thread sizing.

This spindle assembly is suited for use in workholding and fixturing applications where manually operated toggle clamps are used on production lines, assembly fixtures, or fabrication jigs. The neoprene flat tip cap protects workpiece surfaces during clamping, making it appropriate for applications where marring or scratching must be avoided. It is installed by maintenance technicians or tooling specialists as a replacement spindle tip on existing toggle clamp bodies.

Key Features

• M4 carbon steel spindle with 1.18-inch thread length
• Neoprene flat tip cap rated at 80-85A Shore hardness
• Tip surface diameter of 0.28 inches; tip maximum diameter of 0.315 inches
• Overall assembly length of 1.26 inches (32 mm)
• Jam nuts included for secure spindle positioning
• Minimum operating temperature of -20 degrees F

Compatibility

Designed for use with manually operated toggle clamps requiring an M4 threaded spindle assembly.

Installation Notes

Installation is performed by tooling or maintenance technicians as part of toggle clamp maintenance or setup. Disengage and lock out the clamp mechanism before replacing the spindle assembly. Thread the spindle to the desired clamping depth and secure position using the included jam nuts. Verify tip cap contact and spindle engagement before returning the clamp to service.
