De-sta-co 2007-U Toggle Clamp 1000 Lb Vertical U-bar

Product Description

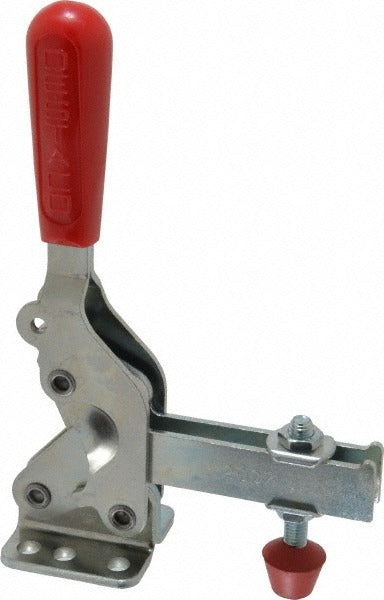

The DE-STA-CO 2007-U is a manual hold-down toggle clamp designed for vertical clamping applications in industrial and manufacturing environments. It delivers a holding capacity of 1,000 lb (4,450 N) through a straight handle with 64 degrees of handle movement and a U-bar that opens 76 degrees. The flanged base provides a stable mounting footprint with six mounting holes, and the body and handle are constructed from carbon steel with a zinc finish coating. A fixed spindle with M8x1.25 thread is included along with two hex head nuts. Licensed professionals and toolmakers install this clamp on fixtures, jigs, and work-holding setups.

The 2007-U is suited for fixture work, welding positioners, assembly jigs, and press operations where a repeatable vertical hold-down force is required. The flanged base allows direct surface mounting to steel fixture plates or benchtop tooling. The U-bar design provides clearance for workpieces of varying thickness. This clamp is typically found in metal fabrication shops, production lines, and machining cells where consistent part registration is critical.

Key Features

• 1,000 lb (4,450 N) holding capacity for demanding fixture and jig applications
• Vertical handle orientation with 64-degree handle movement for operator access in tight setups
• U-bar opens 76 degrees, allowing quick workpiece loading and unloading
• Flanged base with six mounting holes for rigid, stable surface attachment
• Fixed spindle with M8x1.25 thread; includes two hex nuts for adjustable clamping height
• Carbon steel construction with zinc finish for corrosion resistance in shop environments

Compatibility

Designed as an OEM-style hold-down toggle clamp for use on industrial fixtures, jigs, and work-holding assemblies requiring a vertical-acting clamp with a flanged base mount.

Installation Notes

Install using the six flanged base mounting holes; verify the mounting surface is flat and fasteners are fully torqued before applying clamping force. Disengage the clamp and relieve all force before adjusting spindle height or removing workpieces. This clamp is typically installed by machinists, fixture builders, or toolmakers and does not require electrical or pneumatic connections. Follow applicable workplace safety standards for mechanical clamping devices when integrating into production fixtures.
