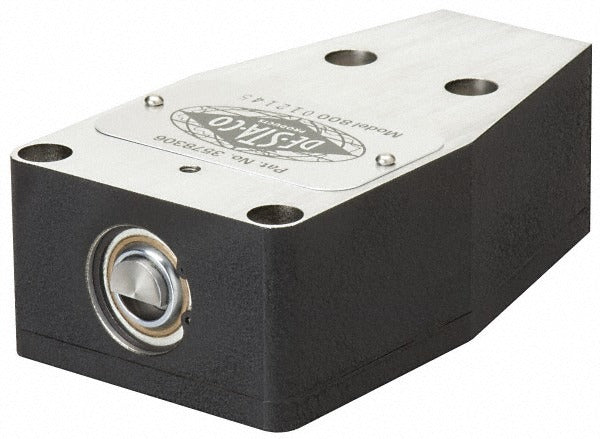

De-sta-co 1200 Air Hold Down Clamp 1600 Lb

Product Description

The DE-STA-CO 1200 is a pneumatically operated hold down clamp rated for 1,600 pounds of holding capacity and 150 psi clamping pressure. It is designed to secure workpieces firmly against a fixture or table surface during production operations, eliminating manual clamping and maintaining consistent clamping force cycle after cycle. With a maximum opening capacity of 0.252 inches and a compact footprint, this clamp suits applications where clearance is limited and repeatable clamping is required. Licensed HVAC, welding, and fabrication professionals install and service these units in production fixture environments.

The DE-STA-CO 1200 is well suited for light machining, assembly, and welding applications where pneumatic actuation is required to reduce operator fatigue and improve cycle times. Its mounting hole configuration allows secure attachment to fixture plates, weld tables, and assembly jigs in both small-shop and production-line environments. The 6-inch clamp length and 1-inch arm length make it appropriate for compact fixture layouts where a larger clamp body would interfere with adjacent tooling or workpiece access.

Key Features

• 1,600 lb holding capacity for reliable workpiece retention under load
• 150 psi operating pressure delivers consistent pneumatic clamping force
• 0.252-inch maximum opening capacity suits thin-stock and close-tolerance fixturing
• Compact 6-inch clamp length and 2.25-inch clamp height for tight fixture layouts
• Mounting holes allow direct bolting to fixture plates, weld tables, and jigs
• Air-operated actuation reduces manual effort and supports repeatable cycle performance

Compatibility

Designed as an OEM-style pneumatic hold down clamp suitable for assembly, light machining, and welding fixture applications where air-operated clamping and a mounting-hole attachment style are required.

Installation Notes

Installation should be performed by a qualified fixture builder or maintenance technician familiar with pneumatic tooling and applicable shop safety procedures. Isolate and depressurize the air supply line before mounting or servicing this clamp. Ensure the mounting surface is flat and that all fasteners are fully seated before applying air pressure. Verify that operating pressure does not exceed the rated clamping pressure specification during setup.
