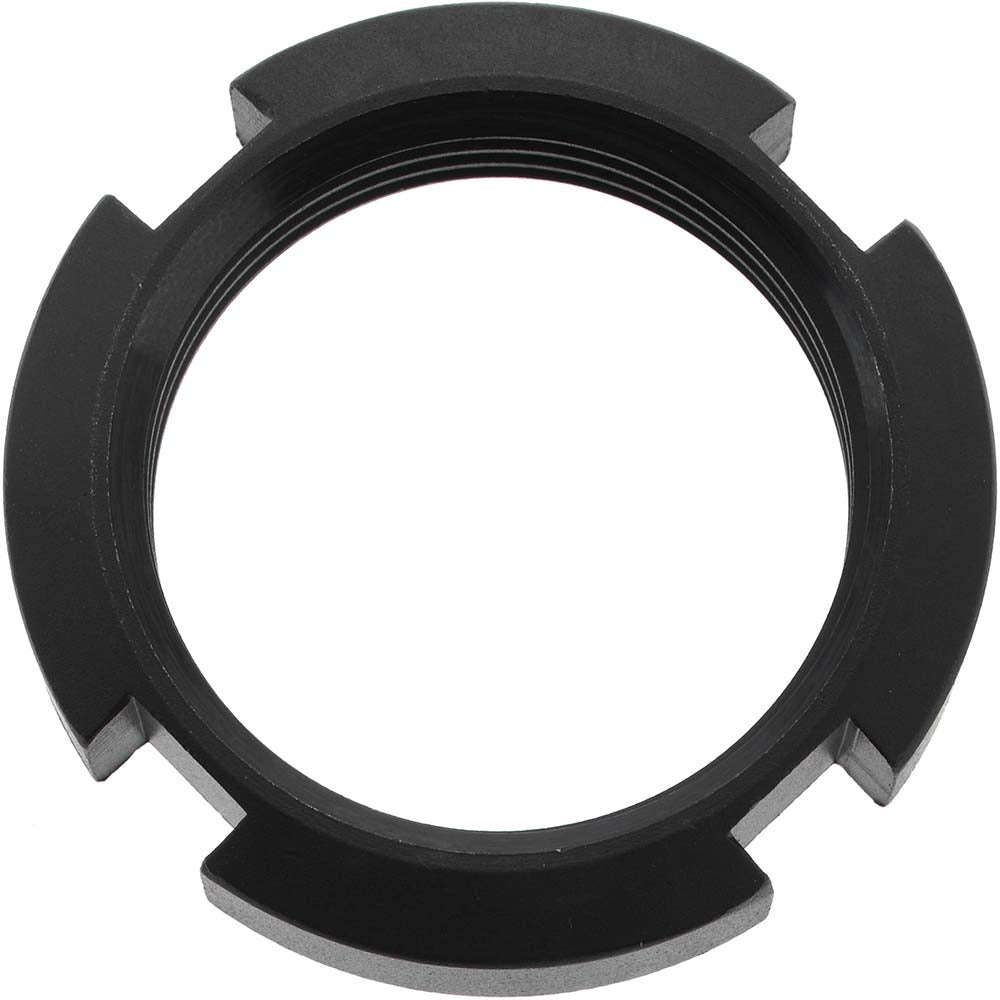

De-sta-co 051-112-160 Clamp Nut 1-1/8-16 Thread

Product Description

The DE-STA-CO 051-112-160 is a replacement clamp nut designed for use with threaded body pneumatic swing clamps. Machined to a 1-1/8-16 thread specification, this nut secures the clamp body assembly and maintains proper positioning under the cyclic loads typical of automated fixturing and workholding applications. It is a direct service part for maintaining pneumatic swing clamp systems used in production and assembly environments. Maintenance technicians and tooling specialists working on automated clamping fixtures are the primary installers of this component.

This clamp nut is intended for threaded body pneumatic swing clamp assemblies commonly found in manufacturing cells, robotic welding fixtures, and automated assembly lines. It is used when a worn or damaged nut must be replaced to restore proper clamp function and clamping force retention. Sold individually, this part suits single-unit repair or low-volume maintenance applications.

Key Features

• 1-1/8-16 thread size for precise engagement with threaded body pneumatic swing clamp housings
• Sold as a single unit, suitable for targeted component-level replacement
• Designed as a DE-STA-CO OEM-compatible service part for pneumatic swing clamp maintenance
• Lightweight at 0.3 pounds, minimizing added mass to the fixture assembly

Compatibility

Compatible with threaded body pneumatic swing clamps requiring a 1-1/8-16 clamp nut, as specified by DE-STA-CO for this part number.

Installation Notes

Installation should be performed by a qualified maintenance technician or tooling specialist. Before servicing any pneumatic swing clamp assembly, depressurize the pneumatic supply line and lock out or tag out the associated machine per applicable OSHA lockout/tagout procedures. Use the correct thread engagement depth and inspect the mating threaded body for damage before installing the replacement nut.
