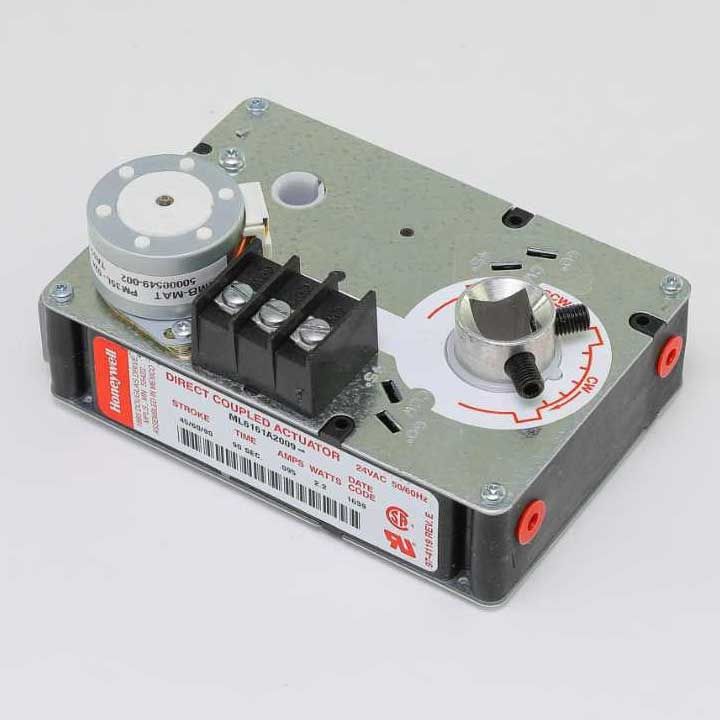

Honeywell ML6161A2009 Damper Actuator 35 lb/in Torque 90 Second Timing Non-Spring Return

Product Description

The Honeywell ML6161A2009 Non-Spring Return Damper Actuator is engineered for superior performance in HVAC systems. This robust actuator provides a torque of 35 lb/in and a 90-second timing for precise control of damper positions.

• Direct-coupled design for enhanced reliability in operations.
• Includes manual declutch lever and feedback output for comprehensive control.
• Engineered for use with SPDT and floating control signals.

Product Highlights

This actuator is suitable for mounting on ball valves and is ideal for variable air volume (VAV) unit applications. It features a superior A/C synchronous submotor that ensures consistent timing and longevity.

Product Information

Standard Information

• Power Supply: 24V DC
• Compatibility: Can be mounted on 3/8 inch or 1/2 inch square or round damper shafts

Technical Specifications

• Stroke Adjustments: Selectable at 45, 60, and 90 degrees
• Connection: SPDT floating two-position control signal
• Material: Durable steel plate and plastic construction
• Dimensions: 6.5 inches length x 4.6 inches width x 4.2 inches height
