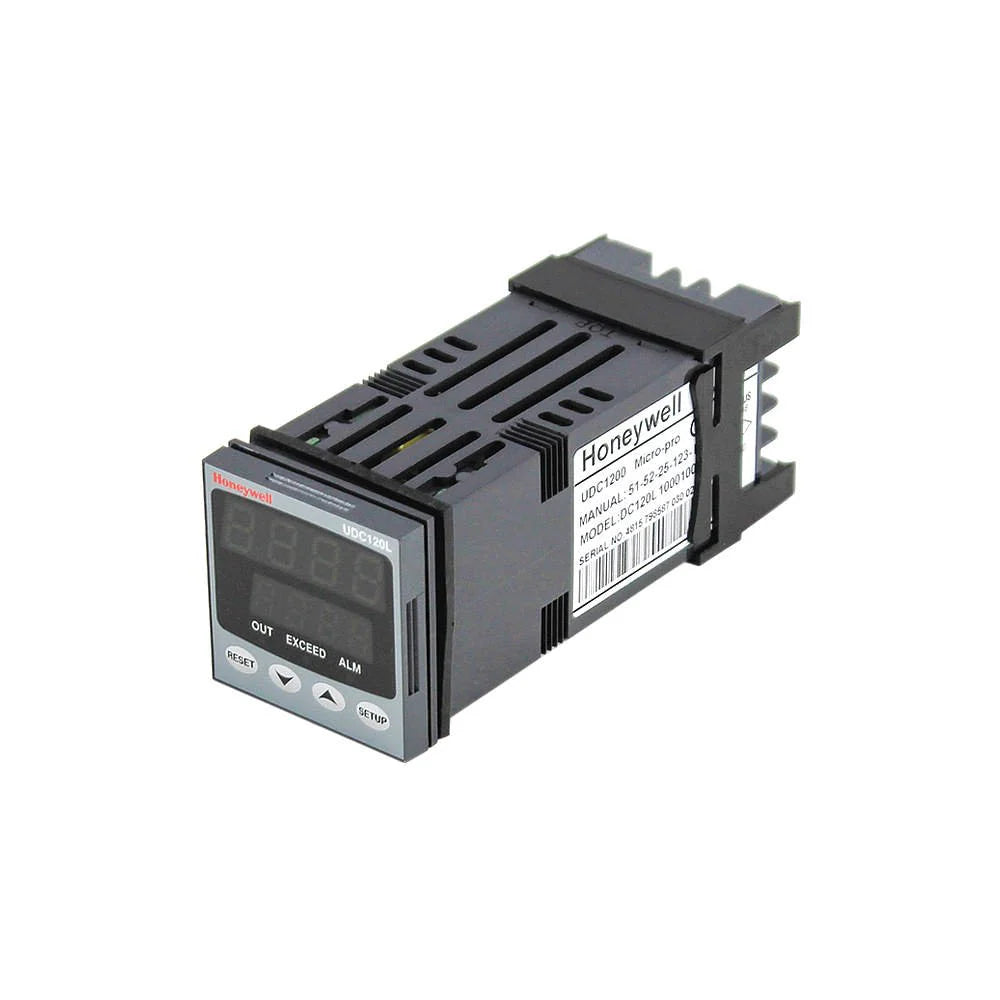

Honeywell DC120L10001000 Digital Temperature Limit Controller Universal Input Relay Output

Product Description

The Honeywell DC120L10001000 is an advanced digital temperature limit controller designed for various industrial applications. This product from Honeywell provides precise temperature regulation, making it suitable for environments such as drying operations, plastic processing, and semiconductor packaging/testing.

• Features dual four-digit displays for clear visualization of process and set values.
• Equipped with universal input compatibility and a variety of control functionalities including PID or On/Off control.
• Supports advanced programming with 16-segment program functionality and optional alarm outputs.

Product Highlights

This model is adept at both heat and cool operations with algorithms that ensure optimal performance. The controller can manage motor positions and includes high and low limit controls for enhanced safety in critical applications.

Product Information

Standard Information

• Input Voltage: 85 to 265 VAC at 50/60Hz
• Control Inputs: Thermocouple, RTD

Technical Specifications

• Model: DC120L10001000
• Control Output 1: Relay: Contact, SPDT, 3 amps @ 240 VAC
• Max Temperature (Celsius): 65
• Min Temperature (Celsius): -25
• Display Type: Dual display, 4-digit 7-segment
• Dimensions: 1/16-DIN size
