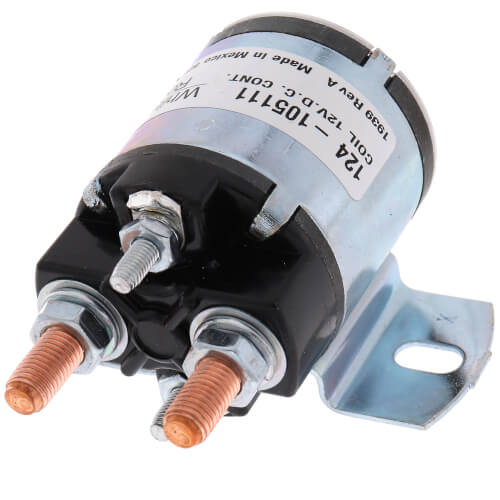

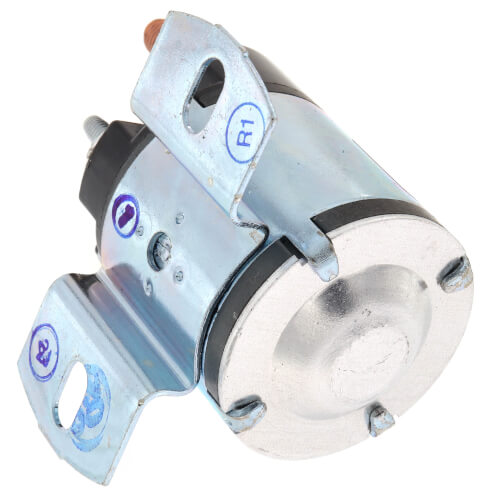

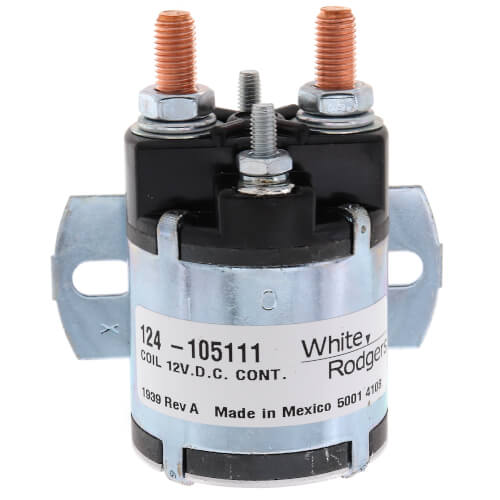

White-Rodgers 124-105111 DC Power Solenoid 12v Continuous Duty 100 Amp

Product Description

The White-Rodgers DC Power Solenoid 124-105111 is an essential component for industrial applications, providing reliable control for power systems. This product is engineered for continuous duty operation, ensuring uninterrupted performance. The solenoid features a single-pole, normally open configuration with a 12v DC coil voltage and a 100 Amp continuous current rating.

• Continuous duty operation
• Single-pole, normally open configuration
• Handles high-power loads with 100 Amp rating

Product Highlights

The White-Rodgers 124-105111 DC Power Solenoid is designed for integration into industrial control panels, HVAC systems, and motor control systems. This solenoid is capable of controlling electrical loads in various power systems and is compact for easy installation.

Product Information

Standard Information

• Item Number: 124-105111
• Brand: White-Rodgers

Technical Specifications

• Current Rating: 100 Amps
• Voltage: 12v DC
• Coil Resistance: 13.2 Ohms
• Duty Cycle: Continuous
• Configuration: Normally Open
• Inrush Current: 400 Amps
• Operating Temperature Range: -40°F to 149°F
• Coil Termination: Isolated
• Contact Terminal Torque: 60 inch-lbs max
• Country of Origin: United States
