Dayton Lamina S2000-35G Shoulder Bushing 2 in Id

Product Description

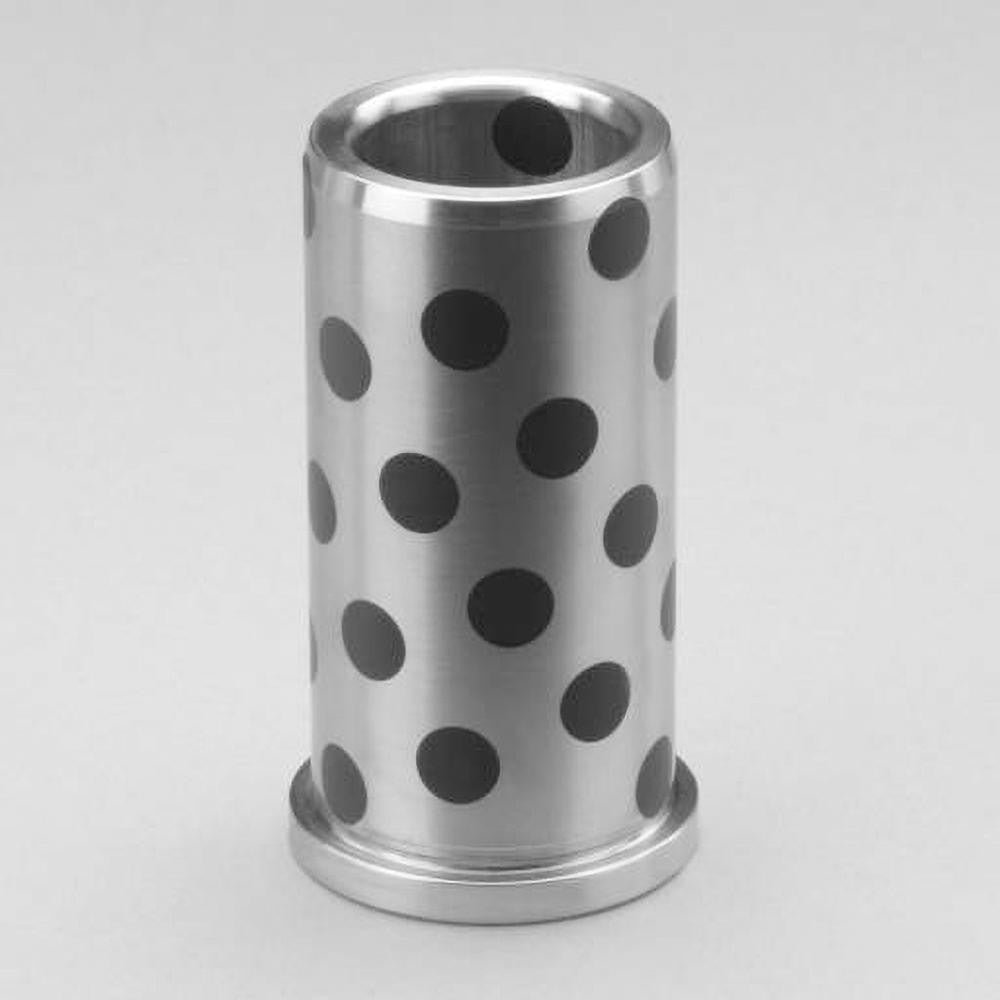

The DAYTON LAMINA S2000-35G is a die mold shoulder bushing machined from aluminum bronze, engineered for friction-type bushing applications in industrial tooling and die mold assemblies. It features a 2.0000-inch inside diameter with a press-fit attachment method and a self-lubricating construction that reduces the need for external lubrication in service. The bushing carries a tolerance of +0.0000 inches to -0.0600 inches on the bore. Toolmakers, die setters, and machine shop professionals install this bushing in mold bases and die sets where precise, repeatable guidance is required.

This shoulder bushing is suited for use in die mold bases in manufacturing and tooling environments. The shoulder collar design allows the bushing to seat positively against a mating surface, providing controlled axial location during installation. The self-lubricating aluminum bronze material makes it appropriate for applications where periodic re-lubrication is impractical or undesirable, including high-cycle production tooling.

Key Features

• Aluminum bronze construction provides strength, wear resistance, and self-lubricating properties
• Press-fit attachment method for secure, no-fastener installation in die mold bases
• Self-lubricating friction bushing design reduces maintenance requirements in high-cycle applications
• Shoulder collar with 3/16-inch collar height provides positive axial seating and location
• Bore tolerance of +0.0000 inches to -0.0600 inches for controlled fit conditions
• Uniform top and bottom outside diameter of 2.5005 inches ensures consistent press-fit engagement

Compatibility

Designed as an OEM-style replacement or standard component for die mold base assemblies requiring a 2-inch ID shoulder bushing with press-fit installation.

Installation Notes
