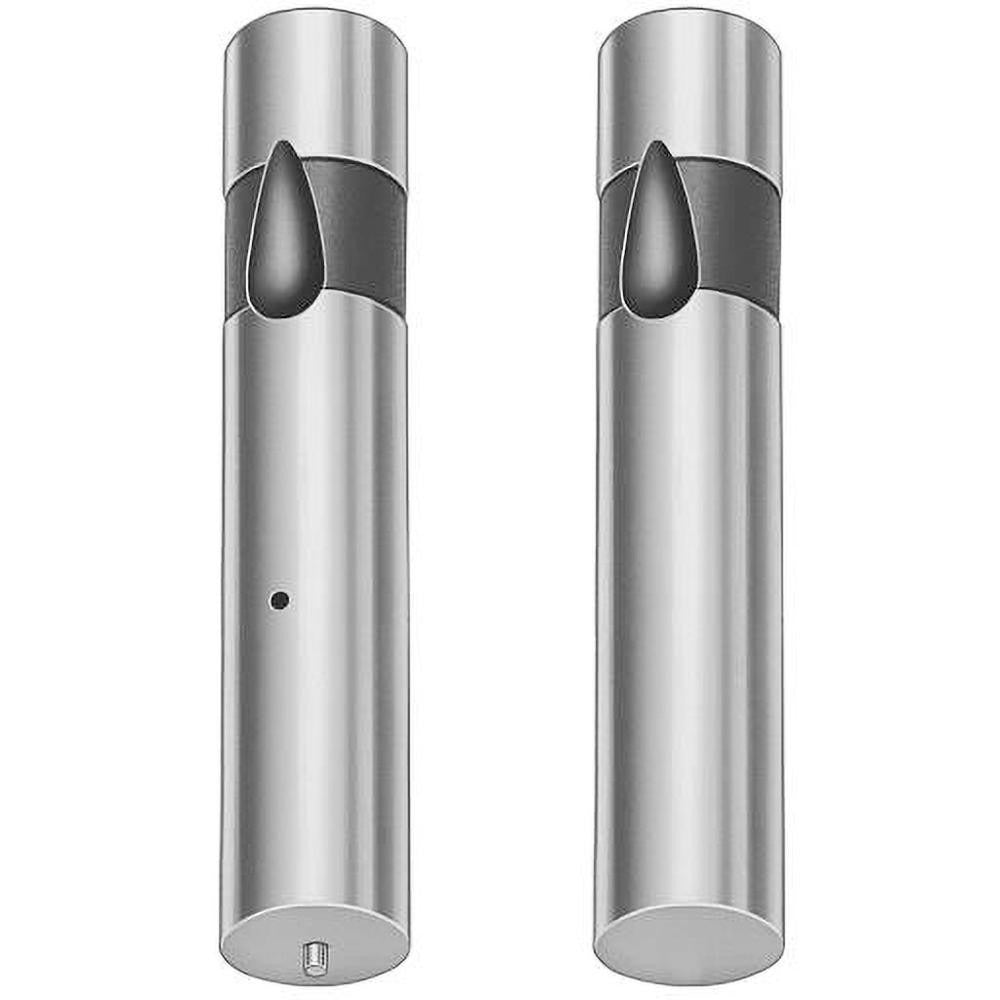

Dayton Lamina Ljb 37 225 M2 Ejector Mold Die Blank

Product Description

The DAYTON LAMINA LJB 37 225 M2 is an ejector mold die blank designed for use in injection mold and die tooling applications. Manufactured from M2 high speed steel, this blank features a 0.375-inch shank diameter, a 0.656-inch machinable length, and an overall length of 2.25 inches. The ball lock retention style secures the blank firmly within the mold assembly during operation. A 0.06-inch pin extension length provides the precise ejector protrusion needed for consistent part release. Toolmakers and mold technicians select this blank when building or repairing ejector pin assemblies in production tooling.

This die blank is suited for use in injection mold tooling where a machinable ejector component is required. The M2 high speed steel construction holds up under repeated cycling and elevated temperatures typical of production mold environments. The ball lock design is compatible with standard ball lock ejector retainer plates used in both prototype and production mold bases. Toolrooms in automotive, medical device, and general plastics manufacturing commonly use blanks of this type during mold build and maintenance operations.

Key Features

• M2 high speed steel construction for wear resistance and toughness in mold tooling
• 0.375-inch shank diameter for standard ejector plate fitment
• 0.656-inch machinable length allows custom finishing to application requirements
• Ball lock retention style for secure seating in the retainer plate
• 0.06-inch pin extension length for controlled ejector protrusion
• 2.25-inch overall length suitable for a range of mold base depths

Compatibility

Designed as an OEM-style replacement ejector mold die blank for use in standard ball lock ejector retainer plate assemblies requiring a 0.375-inch shank diameter component.

Installation Notes

Installation is typically performed by a toolmaker or mold technician during mold build or scheduled maintenance. Disengage all hydraulic, pneumatic, and electrical systems connected to the mold press before servicing ejector components. The machinable section should be finish-ground to the required pin diameter and length before installation. Follow the mold manufacturer's specifications and applicable shop safety procedures when working with precision tooling components.
