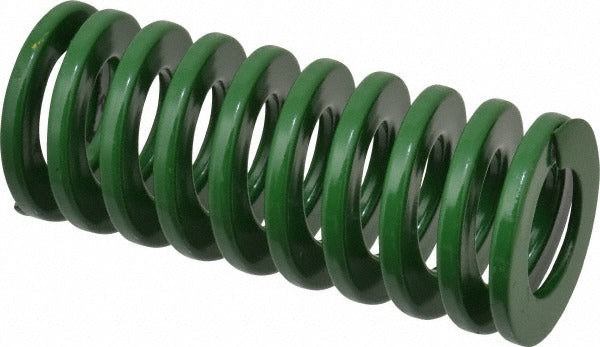

Dayton Lamina 9-2414-11 Die Spring Light-duty Green

Product Description

The DAYTON LAMINA 9-2414-11 is a light-duty die spring engineered for use in stamping dies, molds, and precision tooling applications. It features a 1-1/2 inch hole diameter, a 3/4 inch rod diameter, and a 3-1/2 inch free length. Manufactured from chromium-vanadium steel, this spring delivers consistent force and reliable fatigue resistance across repeated press cycles. The green color coding identifies it as a light-duty rating per ISO 10243 standards. Maximum deflection load is 446 pounds at a maximum deflection of 1.4 inches, making it suitable for applications requiring controlled, moderate spring force.

This die spring is used in punch press tooling, injection mold strippers, die sets, and similar precision metal fabrication or plastics processing equipment. It is typically installed by tool and die makers, mold builders, or press maintenance technicians. The D-shaped wire cross-section maximizes load capacity relative to the spring envelope, which is especially useful in space-constrained die sets. Residential and light commercial applications are not typical for this part; it is a production tooling component.

Key Features

• Light-duty load rating with 446 pounds maximum deflection load
• 1.4 inch maximum deflection with a travel to solid load of 1.76 inches
• D-shaped wire cross-section for higher load capacity in compact spaces
• Chromium-vanadium steel construction for fatigue resistance and durability
• Green color coding for quick load-category identification per ISO 10243
• Meets ISO 10243, ISO 9001:2015, and NAAMS standards

Compatibility

Designed as a direct-replacement or new-installation die spring for light-duty stamping dies, mold assemblies, and precision tooling sets requiring a 1-1/2 inch hole diameter and 3/4 inch rod diameter.

Installation Notes

Die springs are installed by qualified tool and die makers or press maintenance personnel. Always relieve press tonnage and de-energize all hydraulic or pneumatic systems before accessing the die set. Ensure the rod and hole diameters of the die set match the spring specifications before installation. Do not compress the spring beyond the rated maximum operating deflection of 40 percent to avoid premature fatigue failure.
