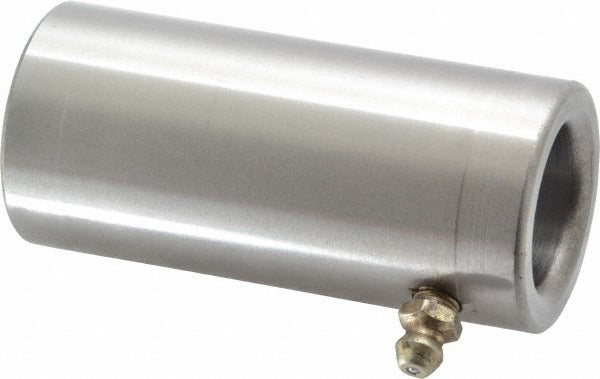

Dayton Lamina 6-07-3 Die Mold Solid Sleeve Steel Extra Long

Product Description

The DAYTON LAMINA 6-07-3 is a solid sleeve designed for die and mold tooling applications. It features an inside diameter of 0.875 inches, an outside diameter of 1.375 inches, and an overall length of 3 inches, classifying it as an extra-long sleeve. Constructed from steel, this sleeve provides the dimensional stability and wear resistance required in precision die sets and mold bases. It is installed by toolmakers, moldmakers, and die maintenance technicians working on stamping dies, injection molds, and similar tooling assemblies where consistent bore alignment is critical.

This sleeve is suited for use in die and mold assemblies that require a solid, non-shouldered bushing to guide or locate tooling components. The extra-long designation indicates a greater length-to-diameter ratio compared to standard sleeves, making it appropriate for applications where deeper engagement or extended guiding length is needed. It fits into tooling plates and die sets where the bore accepts a 1.375-inch outside diameter component.

Key Features

• Inside diameter of 0.875 inches for precise bore fitment
• Outside diameter of 1.375 inches for standard die set plate installation
• Overall length of 3 inches - extra-long sleeve type for extended guide engagement
• Steel construction provides hardness and dimensional stability under load
• Solid sleeve design with no shoulder or flange for flush or press-fit mounting

Compatibility

Designed as an OEM-style replacement or direct-fit component for die sets and mold bases requiring a solid sleeve with 0.875-inch inside diameter and 1.375-inch outside diameter.

Installation Notes

Solid sleeves of this type are typically press-fit into tooling plates by toolmakers or die maintenance personnel using an arbor press or hydraulic press. Confirm bore tolerance in the receiving plate before installation to ensure proper interference fit. Do not drive the sleeve with a hammer directly on the bore end, as this can distort the inside diameter. Always verify alignment with the mating guide pin or punch before final press-in.
