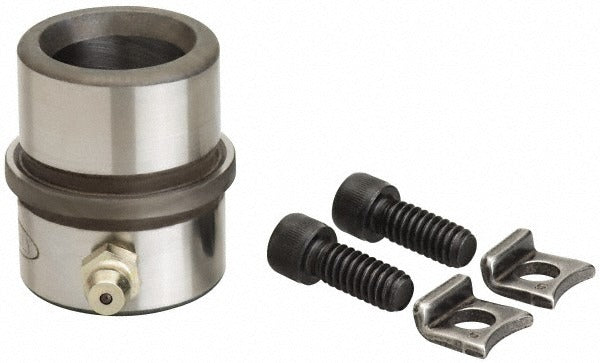

Dayton Lamina 6-06-63 Steel Short Shoulder Die Bushing

Product Description

The DAYTON LAMINA 6-06-63 is a steel short shoulder die mold bushing designed for precision guide and locating applications in press tooling and mold assemblies. With a 0.750 inch inside diameter, a bottom outside diameter of 1.175 inches, and a top outside diameter of 1.125 inches, this bushing provides accurate bore alignment in die sets. The collar outside diameter measures 1.300 inches, with 0.750 inches of length under the collar and 0.6875 inches above. It uses a demountable attachment method and is a non-self-lubricating, friction-type bushing. Tool and die makers install this component during die set assembly or maintenance.

This bushing is suited for use in short shoulder die set configurations where a demountable, friction-retained guide component is required. It fits applications in metal stamping, forming, and injection mold tooling where repeatable bore alignment is critical. The demountable design allows for field replacement without specialized press equipment in many setups. Compatible clamp part number for this bushing is 6-95-1 per manufacturer specifications.

Key Features

• Short shoulder body type sized for compact die set clearance requirements
• 0.750 inch inside diameter for precision guide pin fitment
• Demountable attachment method allows removal and replacement in the field
• Non-self-lubricating friction bushing design - external lubrication applied as needed
• Steel construction provides durability under repetitive press cycle loads
• Compatible with clamp 6-95-1 for secure retention in die shoe bores

Compatibility

Designed for use with demountable clamp 6-95-1. Fits die sets requiring a short shoulder friction bushing with a 0.750 inch inside diameter and a 1.300 inch collar outside diameter.

Installation Notes

Installation is typically performed by tool and die makers or machinist-level technicians during die set assembly or component replacement. Ensure the die shoe bore is clean and within tolerance before pressing or seating the bushing. Use the specified demountable clamp (6-95-1) to secure the bushing - do not substitute clamp hardware. Always lock out and tag out press equipment before performing any die set maintenance.
