Dayton Lamina 5-1652-1 Guide Post 2in Od 13in Friction Press-fit

Product Description

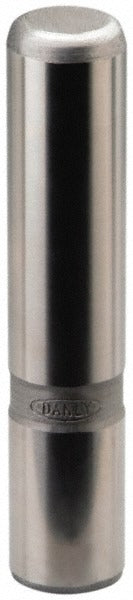

The DAYTON LAMINA 5-1652-1 is a press-fit friction guide post designed for use in stamping dies, punch press tooling, and precision metalworking fixtures. It features a 2-inch outer diameter and a 13-inch overall length, constructed from hardened steel with a chrome-plated finish. The chrome plating provides a wear-resistant, low-friction surface that supports accurate, repeatable die alignment under production cycle loads. This guide post is installed by toolmakers and die maintenance technicians as a core component in die sets requiring consistent alignment between the upper and lower die shoes.

This post is suited for press-fit installation in die set applications where a friction-style post is specified. Friction posts rely on a controlled-clearance fit with a matching guide bushing to maintain alignment without a locking mechanism, making them a standard choice in progressive, compound, and blanking die sets used in light to medium stamping operations. The 2-inch diameter and 13-inch length address larger die sets requiring extended travel and robust positional control.

Key Features

• Press-fit attachment method for secure, permanent mounting in the die shoe
• Friction post design pairs with a matching guide bushing for controlled-clearance alignment
• 2-inch outer diameter accommodates larger die set configurations
• 13-inch overall length provides extended stroke clearance
• Hardened steel construction resists wear and deformation under repeated press loads
• Chrome-plated finish reduces friction and extends service life against mating bushing surfaces

Compatibility

Designed as a standard press-fit friction guide post for use in die sets requiring a 2-inch diameter post with a 13-inch overall length and a matching guide bushing of the corresponding bore size.

Installation Notes

Guide post installation is performed by toolmakers or die maintenance technicians. Press all tooling out of the die shoe and secure the workpiece before pressing in the post. A hydraulic or mechanical press should be used to achieve the required interference fit - never drive the post in by impact without proper tooling support, as this can damage the post or distort the shoe bore. Verify post perpendicularity after installation before returning the die set to service.
