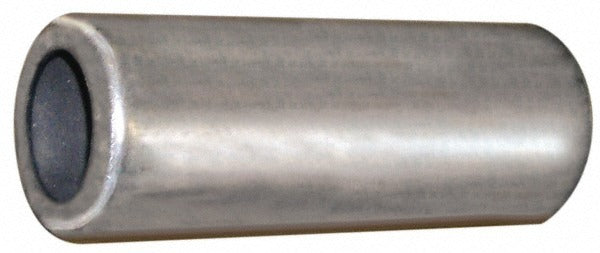

Dayton Lamina 10-12 Spring Cage 1.5in Oal Steel

Product Description

The DAYTON LAMINA 10-12 is a steel spring cage used in die and stamping tooling assemblies. It serves as a retaining component that houses and guides compression springs within a die set, keeping spring alignment consistent during press cycles. Fabricated from steel, this cage provides the structural durability required in high-cycle tooling environments. With an overall length of 1.5 inches and an outer diameter of 1.25 inches, it is sized for compact die stations where space and precise spring positioning are critical. Toolmakers and die maintenance technicians are the primary users of this component.

This spring cage is suited for use in progressive dies, stamping dies, and general tooling fixtures in light to medium manufacturing applications. It is typically installed in die sets where spring return force must be controlled and repeated accurately across production runs. The compact dimensions make it appropriate for tight-clearance die stations in both prototype and production tooling.

Key Features

• Steel construction for durability in high-cycle die tooling applications
• Overall length of 1.5 inches for compact die station fitment
• Outer diameter of 1.25 inches for consistent spring alignment and retention
• Designed to maintain spring positioning through repeated press cycles
• Single-piece quantity suitable for individual station replacement or new build

Compatibility

Designed as an OEM-style replacement or new-build component for die sets and stamping tooling assemblies requiring a steel spring cage with a 1.5 inch overall length and 1.25 inch outer diameter.

Installation Notes

Installation is performed by toolmakers or die maintenance technicians during die build or repair. Always de-energize and lock out the press before servicing any die component. Ensure the cage seats fully and squarely within the die pocket before closing the die set. Verify spring free length and load rating are compatible with the cage dimensions before assembly.
