Product Description

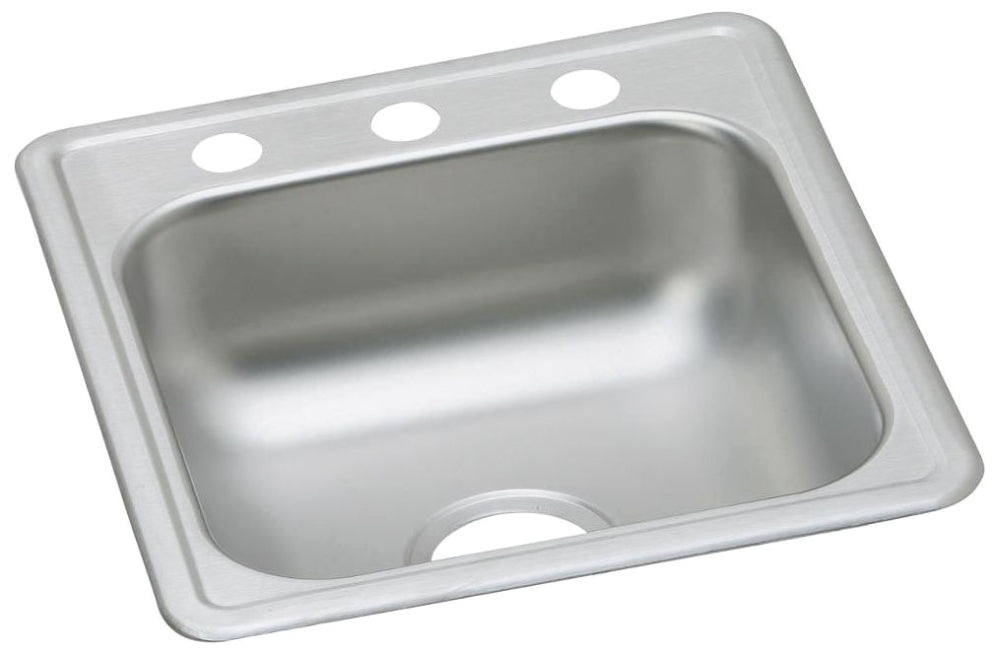

The Dayton D117193 is a stainless steel bar sink designed for drop-in installation. It measures seventeen inches in length, nineteen inches in width, and stands six and one-eighth inches high. The sink features three faucet holes and a center drain, making it suitable for various uses in home and commercial kitchens.
- Material: 300 series stainless steel
- Drop-in mounting for easy installation
- Sound-deadening pads for noise reduction
Product Highlights
This sink is crafted from durable stainless steel and is ADA compliant when installed properly. It includes features that enhance usability and minimize noise, making it ideal for everyday tasks.
Product Information
Standard Information
-
Brand: Dayton
-
MPN: D117193
Technical Specifications
-

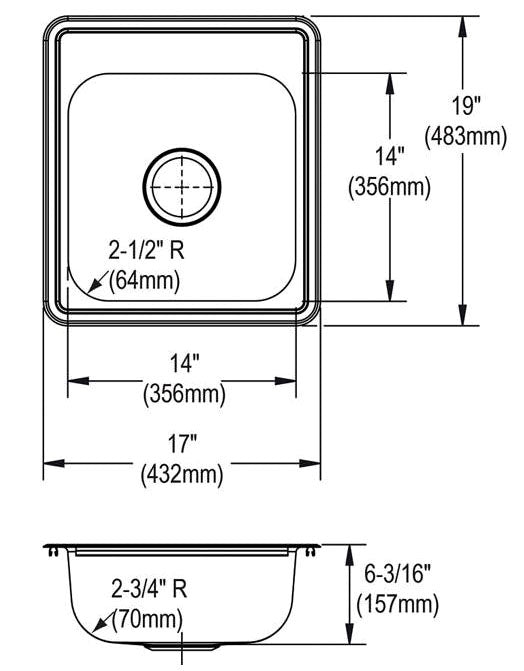

Overall Dimensions: 17 inches L x 19 inches W x 6-1/8 inches H
-
Bowl Dimensions: 14 inches L x 14 inches W x 6 inches D
-
Cutout Size: 16-3/8 inches L x 18-3/8 inches W
-
Gauge: 22
-
Number of Holes: 3
-
Faucet Hole Center: 8 inches
-
Drain Connection: 3-1/2 inches
-
Minimum Cabinet Size: 21 inches
-
Material: 300 Series Stainless Steel
-
Compliance Standards: ADA, ASME A112.19.3, CSA B45.4, cUPC, IAPMO
