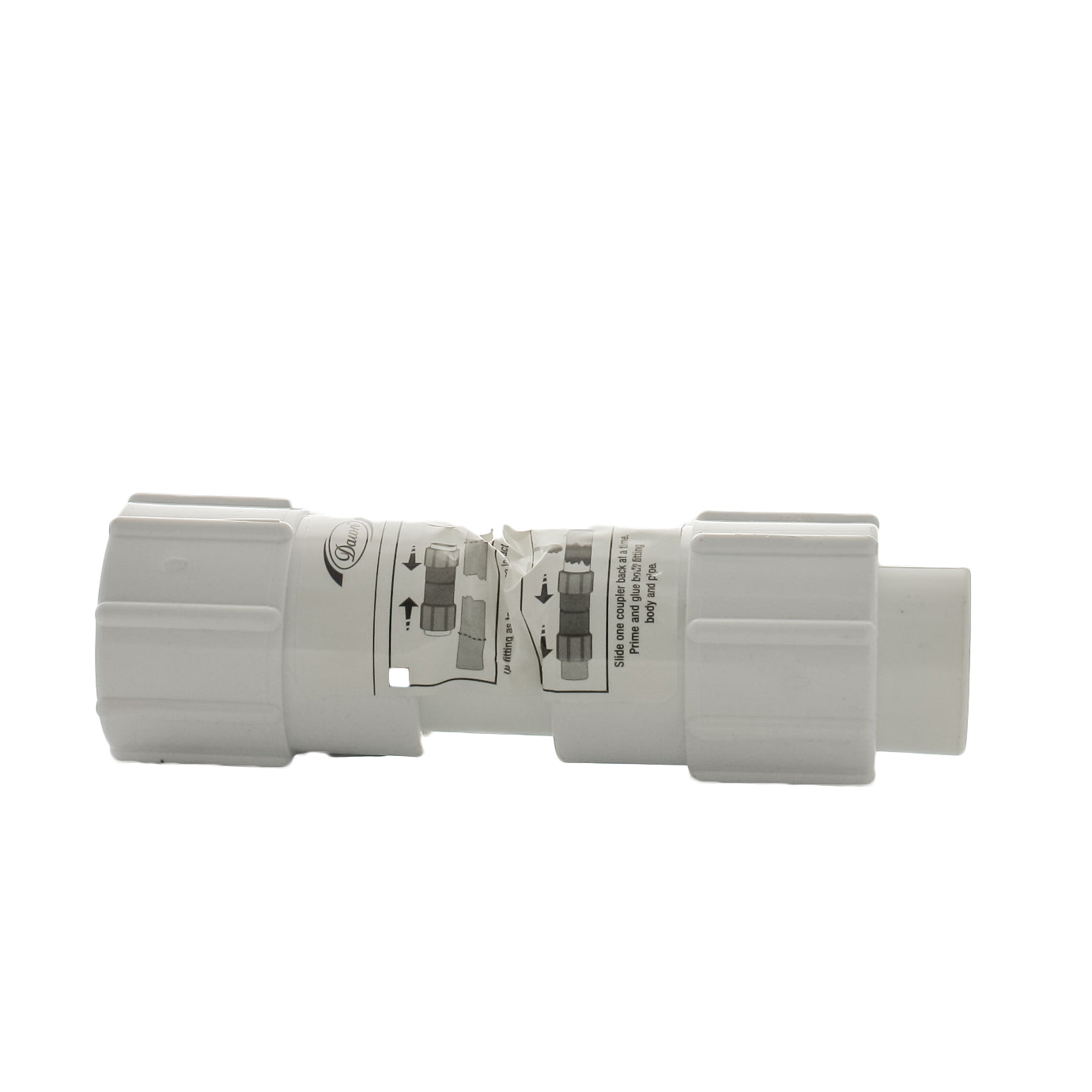

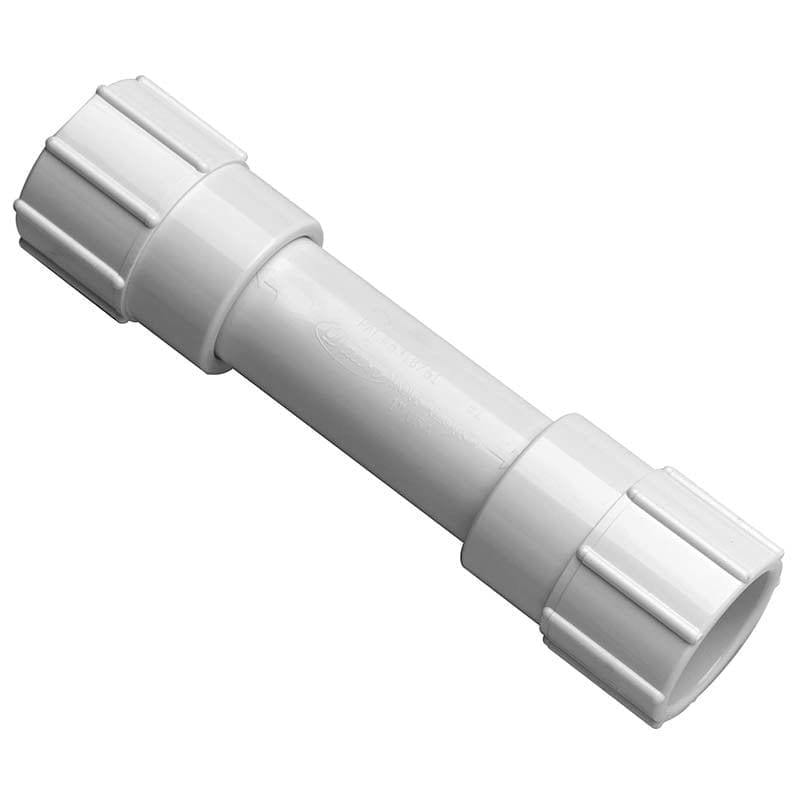

Dawn KRC429-007 KwikRepair PVC Repair Coupler (3/4 in Slip)

Product Description

The Dawn KRC429-007 KwikRepair PVC Repair Coupler is a sleeve-style, solvent-weld repair fitting for permanent in-line repairs of 3/4 in Schedule 40 PVC pipe. Its low-profile sliding sleeve enables slip-to-slip replacement without bending or flexing the pipe and creates a solvent-weld seal without O-rings. Independently tested to 360 PSI at 73°F, the coupling suits irrigation, outdoor plumbing, agricultural and limited-space repairs and requires standard PVC primer and solvent.

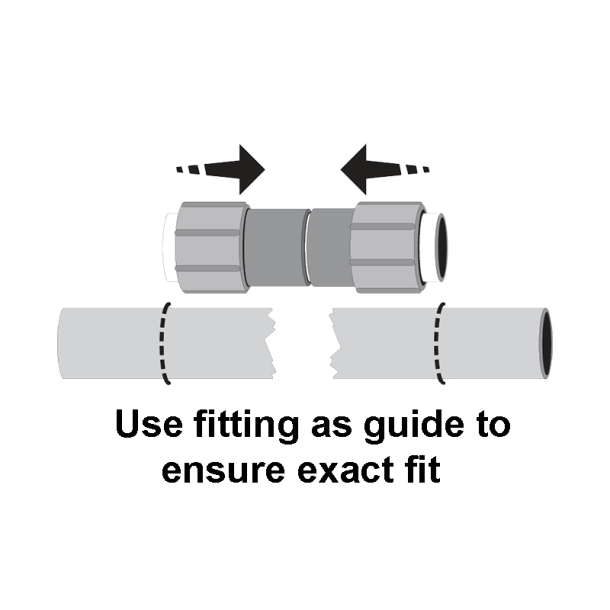

• Single-sleeve low-profile design slides onto pipe for in-line slip-to-slip repairs without flexing the pipe

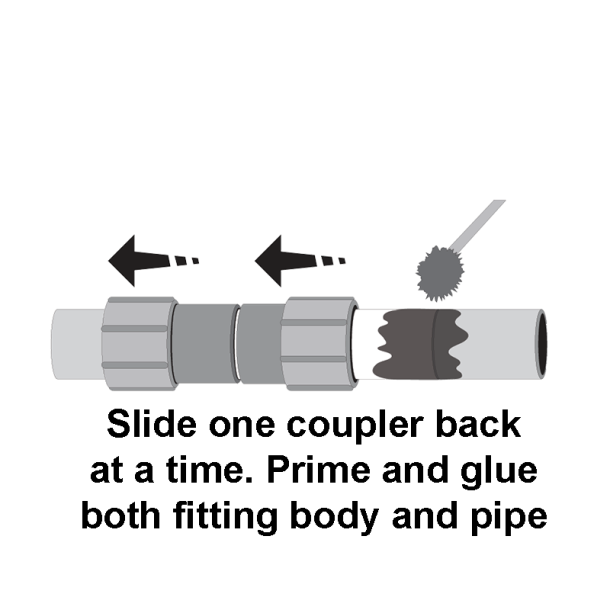

• Solvent-weld installation provides a permanent seal; primer and solvent required, no O-rings or thrust blocking needed
• Independently tested to 360 PSI at 73°F; constructed from Schedule 40 PVC for corrosion resistance

Product Highlights

Sleeve-style solvent-weld coupler for 3/4 in Sch.40 PVC; 360 PSI working pressure; collapsed length 4.5 in, extended 6.25 in.

Product Information

Standard Information

• Brand: DAWN
• Manufacturer Part Number: KRC429-007
• Country of Origin: United States

Technical Specifications

• Brand: Dawn
• Manufacturer Part Number: KRC429-007
• Model: KwikRepair PVC Repair Coupler
• Series: KRC429
• Connection Size: 3/4 in (nominal)
• Connection Type: Slip (slip-to-slip)
• Material: Schedule 40 PVC
• Installation Method: Solvent-weld (primer and solvent required)
• Working Pressure: 360 PSI at 73°F
• Burst Pressure: 1540 PSI
• Design: Single-fitting in-line repair; low-profile sliding sleeve
• Dimensions (Collapsed): 4.5 in L x 1.5 in H x 1.5 in W
• Dimensions (Extended): 6.25 in L x 1.5 in H x 1.5 in W
• Outside Diameter: 1.5 in (outer body diameter)
• Inside Diameter: 3/4 in (nominal connection size)
• Patent: US Patent #6318761
• Made In: USA
