Dauer Manufacturing 490543 600W Professional Grade Transformer

Product Description

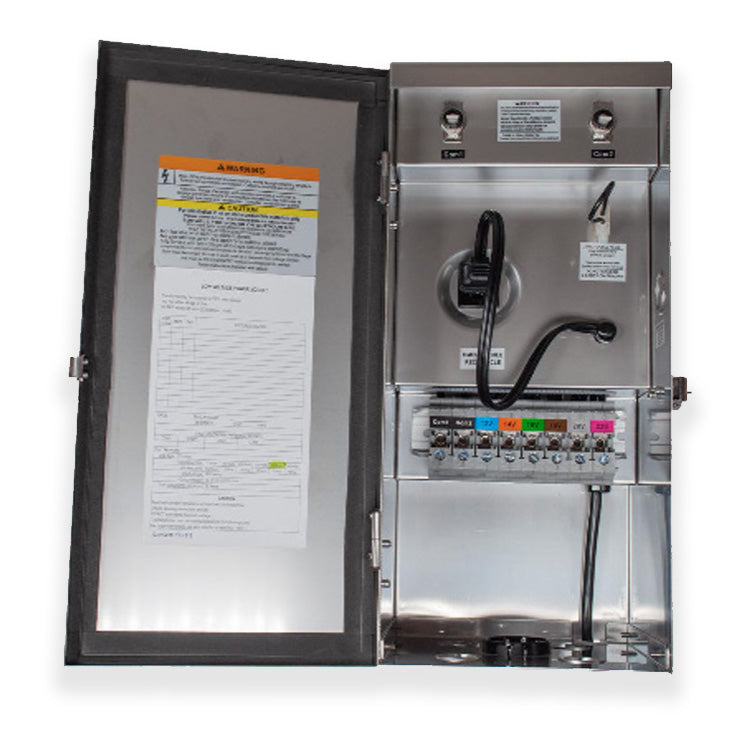

The DAUER MANUFACTURING 490543 is a stainless steel professional small box low-voltage 600-watt transformer. It features a DIN rail with five taps for 12- to 22-volt output and two common taps. Includes a photocell receptacle, timer plug, and primary amp loop, along with two 25-amp breakers and a removable hinged door.

• OUTPUT: 600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps. INPUT: 120V, 60Hz, 5A
• HOUSING: Stainless steel housing and removable hinged swinging door with a lockable latch. Pre-punched bottom and side panels.
• FEATURES: DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord. Suitable for interior or exterior use.

Product Highlights

This 600W transformer is highly efficient with 92 to 95% regulation and is suitable for both interior and exterior use. ETL listed and conforms to ANSI/UL 2101.

Product Information

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 490543

Technical Specifications

• Model: 490543
• Color/Finish: Stainless Steel
• Manufacturer: DAUER MANUFACTURING
• Accessory Type: Transformer
• Input Voltage: 120V
• Output Voltage: 12V, 14V, 16V, 18V, 20V, 22V
