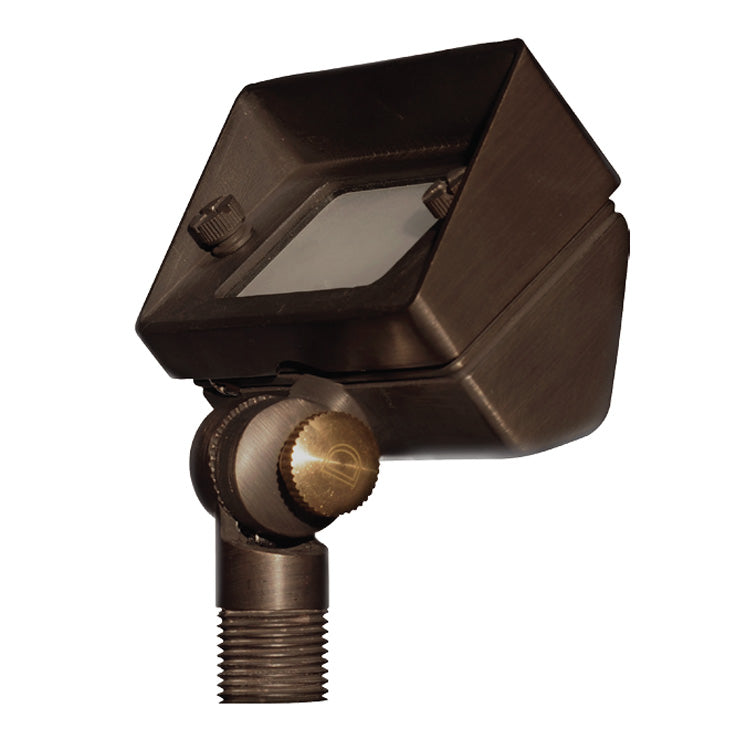

Dauer Manufacturing 490009 Metropolitan Wall Washer 6W

Product Description

The DAUER MANUFACTURING 490009 Metropolitan cast brass small wall wash comes with both clear and frosted glass, gasketed lenses. It has a 5-foot 18/2 wire lead and includes a heavy-duty composite stake for mounting. It uses 12V bi-pin lamps with G4 or GY6.35 base and a maximum of 6W LED is recommended.

• Solid brass housing with angled shroud
• Includes clear and frosted tempered glass lenses
• Heavy-duty composite stake included

Product Highlights

The Metropolitan wall washer is ideal for accenting building and barrier walls, as well as for lighting landscape features from below.

Product Information

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 490009

Technical Specifications

• Housing: Solid brass. Angled shroud.
• Finish: Weathered brass
• Lens: Clear and frosted tempered glass lenses included.
• Socket/Lamp Holder: One fixed ceramic bi-pin socket accepts bi-pin lamps with G4 or GY6.35 base.
• Lamp Type: 12V bi-pin. LED recommended. Halogen 35W maximum or 6W LED maximum.
• Mounting: 1/2 NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
• Wiring: Pre-wired with 5' pigtail of 18/2 cable.

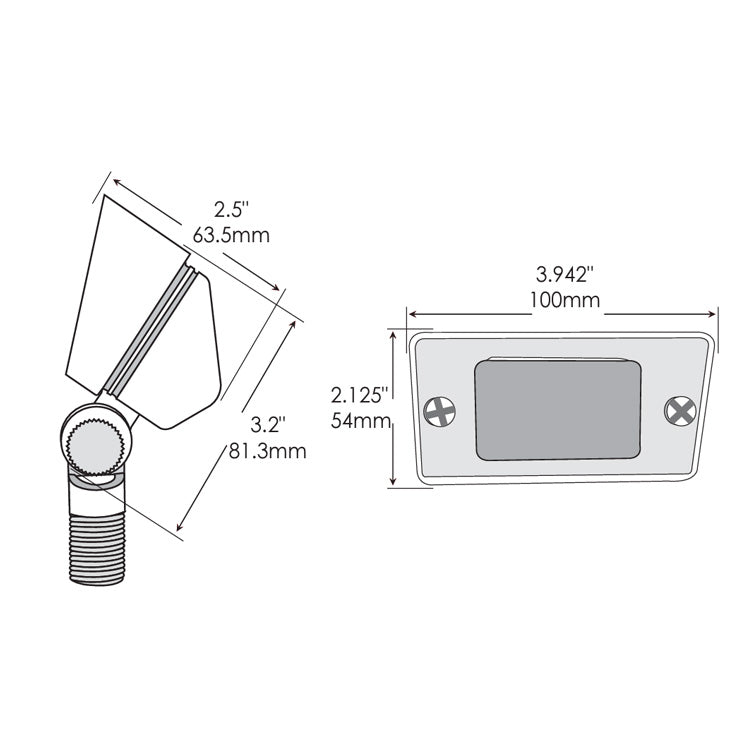

• Overall Height: 3.2"
• Depth: 2.5"
• Width: 3.942"
• Face Height: 2.125"
• Fixture Type: Wall Washer
• Bulb/Lamp: G4 (not included)
• Watts: 2W - 4W
• Voltage: 12V
• Model: 490009
• Color/Finish: Weathered Brass
• Manufacturer: Dauer Manufacturing
• Material: Brass
• Exterior Finish: Brass
• Metal Type: Brass
