Dauer Manufacturing 487147-2700K Led Lamp 3W BA15D 12V

Product Description

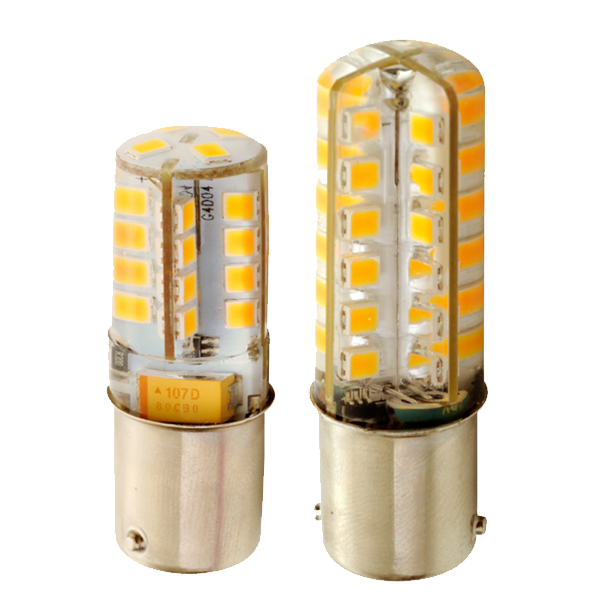

The DAUER MANUFACTURING 487147-2700K is an encapsulated LED lamp designed for low-voltage 12-volt applications. Rated at 3 watts, it produces 220 lumens of warm white light at a 2700K color temperature, making it well-suited for indicator, sign, and equipment lighting where a BA15D double-contact bayonet base is required. The encapsulated construction protects the LED components from moisture and vibration, extending service life in demanding environments. This lamp is installed by HVAC technicians, electricians, pool service professionals, and equipment maintenance personnel as a direct replacement for incandescent or halogen lamps in compatible fixtures.

This lamp is used in applications requiring a BA15D bayonet base at 12 volts DC or AC, including equipment indicator lighting, marine fixtures, RV lighting, pool and spa equipment panels, and low-voltage sign lighting. The 2700K warm white output suits enclosed or open fixtures where a soft, incandescent-like tone is preferred. The 3-watt draw provides significant energy reduction compared to equivalent incandescent lamps of similar lumen output.

Key Features

• BA15D double-contact bayonet base for secure, tool-free installation
• 3-watt power draw with 220-lumen output for energy-efficient operation
• 2700K warm white color temperature for incandescent-style lighting quality
• 12-volt rated for low-voltage systems and equipment panels
• Encapsulated design resists moisture and vibration in service environments

Compatibility

Designed as a direct replacement for BA15D base incandescent or halogen lamps rated at 12 volts in equipment, marine, pool and spa, or low-voltage fixture applications.

Installation Notes

De-energize the circuit or disconnect power to the fixture before replacing the lamp. Align the two pins of the BA15D base with the bayonet slots, press in, and rotate to lock. Verify the replacement lamp voltage and base type match the fixture specifications before installation. Electricians should follow applicable NEC requirements for low-voltage lighting circuits.

Technical Specifications

• Voltage: 12 volts
• Wattage: 3 watts
• Color Temperature: 2700K
• Lumen Output: 220 lumens
• Base Type: BA15D double-contact bayonet
• Construction: Encapsulated

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 487147-2700K
