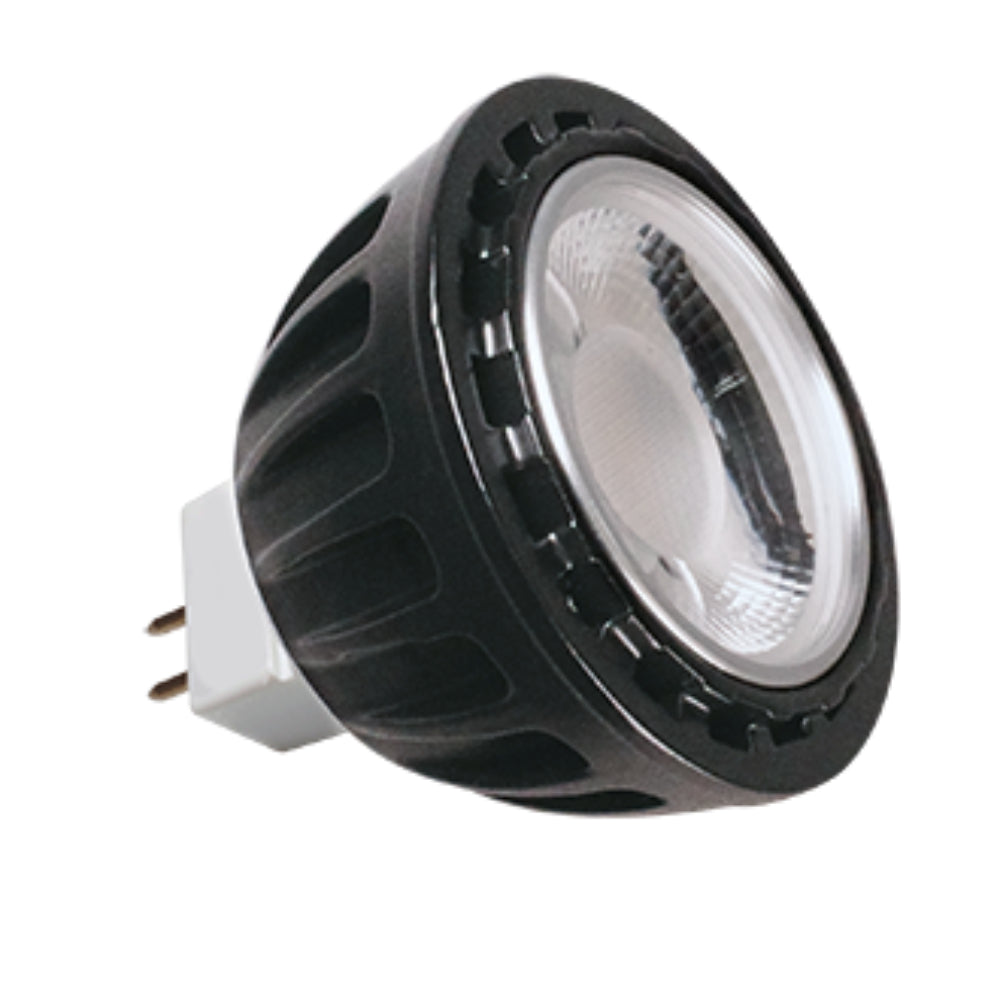

Dauer Manufacturing 486754 MR16 Led Lamp 5W 12V 425lm

Product Description

The DAUER MANUFACTURING 486754 is an MR16 LED lamp rated at 5 watts and 12 volts, producing 425 lumens of light output at a 2700K color temperature. The 25-degree beam angle makes it well suited for focused, directional lighting applications. This lamp is a direct LED retrofit for low-voltage MR16 fixtures and is installed by licensed electricians or qualified lighting technicians in commercial and residential settings.

The 486754 fits standard MR16 low-voltage fixture sockets operating at 12 volts AC or DC. The 2700K warm white color temperature suits accent lighting, display lighting, retail environments, and residential recessed or track lighting applications. The narrow 25-degree spot beam concentrates light output for precise directional control, making it a practical choice when replacing halogen MR16 lamps in existing low-voltage track or recessed systems.

Key Features

• 5-watt LED draw replaces higher-wattage halogen MR16 lamps in 12-volt fixtures
• 425 lumens of light output from a compact MR16 form factor
• 2700K warm white color temperature for accent and display applications
• 25-degree spot beam angle for focused, directional illumination
• 12-volt operation compatible with standard low-voltage MR16 transformer systems

Compatibility

Designed as a direct replacement for standard 12-volt MR16 halogen or LED lamps in low-voltage track, recessed, and accent lighting fixtures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit and verify the fixture transformer output is rated for 12 volts before installing. Confirm the existing low-voltage transformer is compatible with LED loads, as some older magnetic transformers may not perform correctly with LED replacements. Handle the lamp by its base to avoid contaminating the lens.

Technical Specifications

• Lamp Type: MR16 LED
• Wattage: 5 watts
• Voltage: 12 volts
• Lumens: 425 lm
• Color Temperature: 2700K
• Beam Angle: 25 degrees

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 486754
