Dauer Manufacturing 486753 MR16 Led Lamp 5W 12V

Product Description

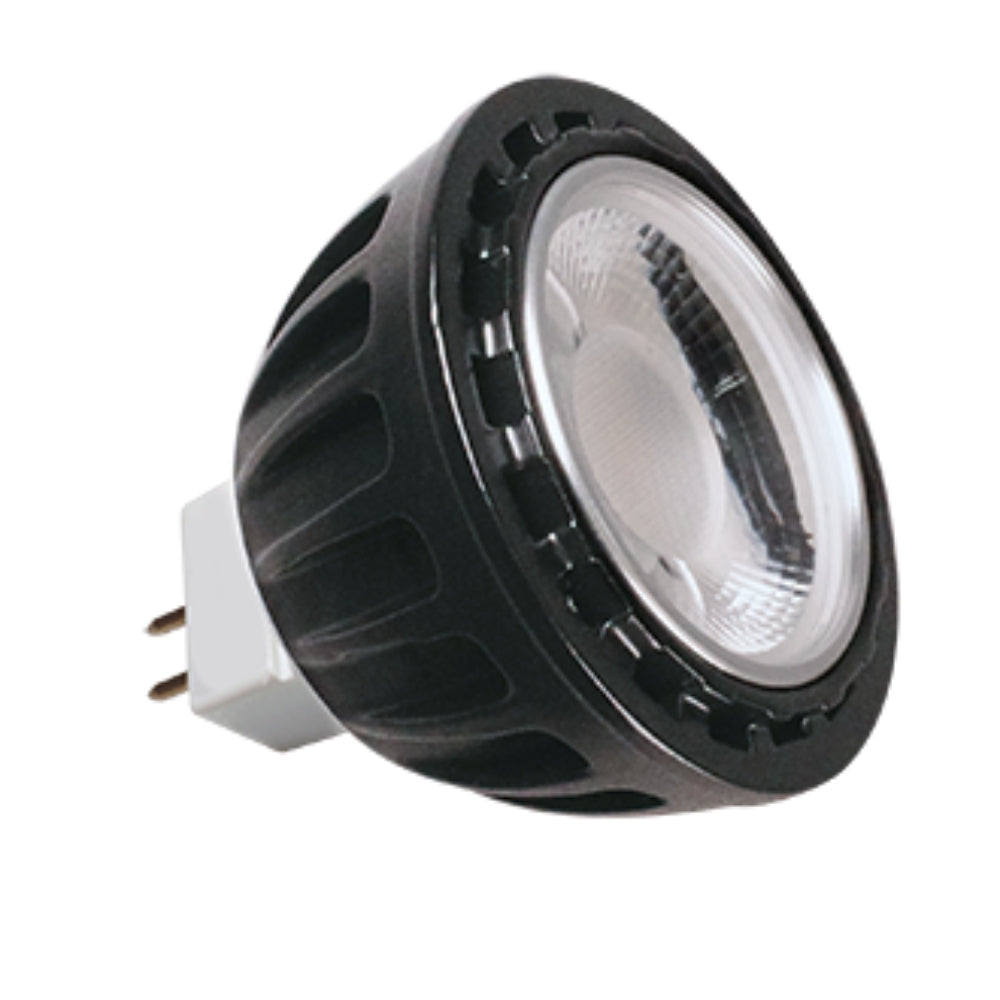

The DAUER MANUFACTURING 486753 is an MR16 LED lamp designed for low-voltage lighting applications in commercial and residential settings. Rated at 5 watts and operating on 12 volts AC or DC, it delivers 425 lumens of warm white light at a 2700K color temperature. The narrow 15-degree beam angle makes it well-suited for accent and directional lighting tasks where precise light placement is required. Licensed electricians and lighting contractors install this lamp type as a direct replacement for halogen MR16 fixtures already wired for 12-volt operation.

This lamp fits into standard GU5.3 bi-pin MR16 fixtures operating at 12 volts. It is commonly used in track lighting, recessed cans, display lighting, and landscape fixtures designed for low-voltage MR16 lamps. The 2700K warm white output blends well in hospitality, retail, and residential accent lighting environments. The 15-degree spot beam concentrates output for focused illumination on artwork, merchandise, or architectural features.

Key Features

• 5-watt LED replaces higher-wattage halogen MR16 lamps in 12-volt fixtures
• 425 lumens output with 2700K warm white color temperature
• Narrow 15-degree beam angle for directional and accent lighting
• 12-volt operation compatible with existing low-voltage transformer systems
• MR16 form factor fits standard GU5.3 bi-pin sockets

Compatibility

Designed as a direct replacement for MR16 halogen lamps in standard 12-volt GU5.3 bi-pin fixtures. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician or lighting technician familiar with low-voltage lighting systems. Verify that the existing transformer or driver is rated for LED loads, as some older magnetic transformers may not be compatible with LED lamps. Power down the fixture and allow the existing lamp to cool completely before handling. Follow all applicable NEC guidelines for low-voltage lighting circuits during installation.

Technical Specifications

• Lamp Type: MR16
• Wattage: 5 watts
• Voltage: 12 volts
• Lumens: 425 lm
• Color Temperature: 2700K
• Beam Angle: 15 degrees
• Order Increment: 1

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 486753
