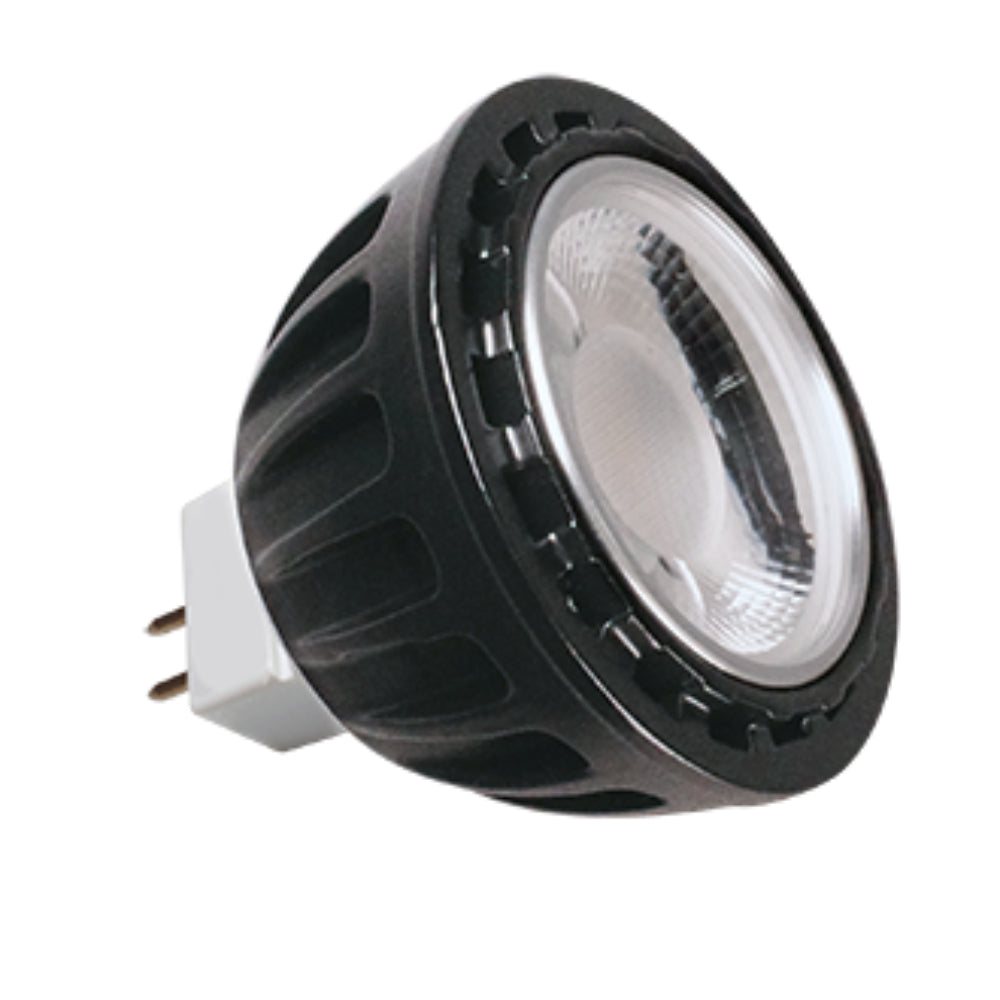

Dauer Manufacturing 486745 MR16 Led Lamp 4W 12V 2700K

Product Description

The DAUER MANUFACTURING 486745 is an MR16 LED lamp rated at 4 watts and 12 volts, delivering 340 lumens of warm white light at a 2700K color temperature. Designed as a direct replacement for standard MR16 halogen lamps, it draws significantly less power while maintaining comparable light output. The 40-degree beam angle makes it well suited for focused accent and display lighting applications. Licensed electricians and lighting technicians install this lamp in low-voltage track, recessed, and landscape fixture systems.

This lamp is intended for use in residential and light commercial low-voltage lighting systems that accept MR16 bi-pin base lamps. Common applications include retail display lighting, recessed accent fixtures, landscape spotlights, and track lighting heads. The 12-volt operating voltage is compatible with both electronic and magnetic low-voltage transformers commonly found in these systems.

Key Features

• 4-watt power draw provides energy-efficient operation compared to standard halogen MR16 equivalents
• 340-lumen output delivers focused, usable light for accent and display applications
• 2700K warm white color temperature matches the appearance of traditional incandescent and halogen sources
• 40-degree beam angle concentrates light for directional and spot-lighting scenarios
• 12-volt operating voltage suits standard low-voltage MR16 fixture and transformer systems

Compatibility

Designed as an OEM-style replacement for standard MR16 bi-pin base low-voltage lamp fixtures operating at 12 volts.

Installation Notes

Installation should be performed by a licensed electrician or qualified lighting technician in accordance with applicable NEC requirements. Always de-energize the circuit and confirm voltage is off at the transformer before handling the lamp or fixture. Avoid touching the LED lens with bare hands, as oils can affect optical performance over time. Verify transformer compatibility and minimum load requirements before replacing multiple halogen lamps with LED equivalents in the same circuit.

Technical Specifications

• Lamp Type: MR16
• Wattage: 4 watts
• Voltage: 12 volts
• Color Temperature: 2700K
• Beam Angle: 40 degrees
• Lumen Output: 340 lumens
• Order Increment: 1

Standard Information

• Brand: DAUER MANUFACTURING
• Manufacturer Part Number: 486745
