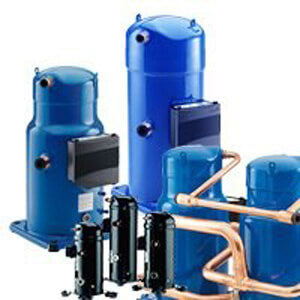

Danfoss SZ175-4QAI 175,000 BTU Scroll Compressor 3-Phase 2900/3500 RPM 50/60 Hz R-134A/R-404A/R-407C/R-507A (400/460V)

Product Description

The Danfoss SZ175-4QAI Scroll Compressor delivers reliable and efficient cooling performance for various applications, including high-temperature environments. This unit operates on a 3-phase system and supports multiple refrigerants such as R-134A, R-404A, R-407C, and R-507A.

• High BTU capacity of 175,000 at 45 degrees Fahrenheit evaporating temperature.
• Features 2900 to 3500 RPM operational range under 50/60 Hz frequency.
• Dual voltage compatibility with 400V and 460V electrical systems.

Product Highlights

Designed for robust performance, the SZ175-4QAI offers flexibility and durability in demanding commercial settings. Key components like the 1-5/8 inches OD suction connection and 1-1/8 inches OD discharge connection ensure efficient thermal management and easy integration into existing systems.

Product Information

Technical Specifications

• Model Number: SZ175-4QAI
• Phase: 3
• Capacity (BTU): 175,000
• Voltage: 400/460V
• Frequency: 50/60 Hz
• Compressor Type: Scroll
• Refrigerant Types: R-134A, R-404A, R-407C, R-507A
• Dimensions (WxLxH): 24.5 inches x 36.5 inches x 24 inches
• Weight: 540 lbs
