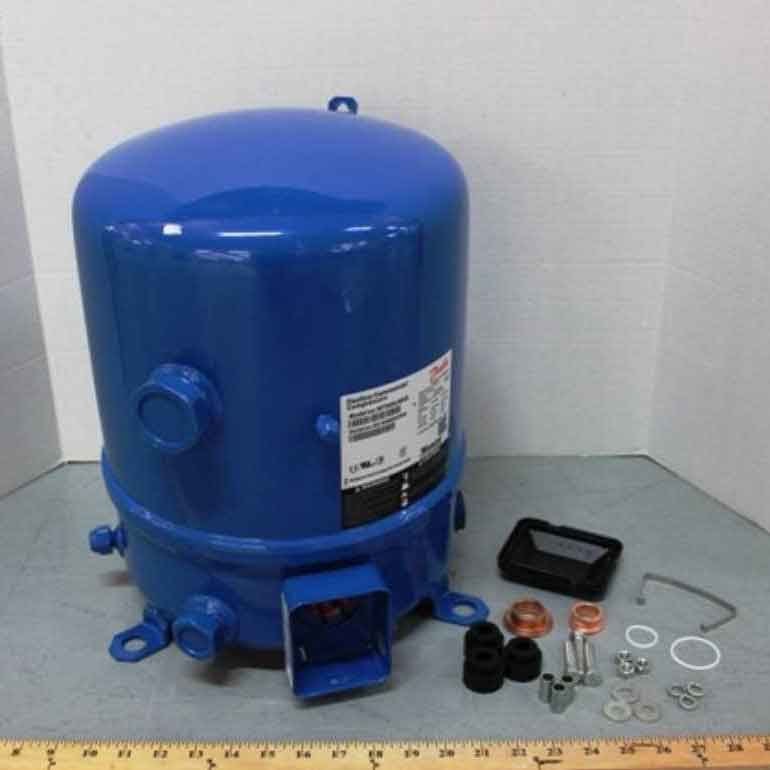

Danfoss MT56-4VI - Model MT56HL4AVE Compressor - 380-400V (3-phase) - 56420 BTU/HR

Product Description

The Danfoss MT56-4VI is a reciprocating compressor designed for use with R22 refrigerant. This compressor operates at a voltage of either three hundred eighty to four hundred volts (50Hz) or four hundred sixty volts (60Hz) and is suitable for three-phase applications. It has a cooling capacity of fifty-six thousand four hundred twenty BTU per hour, measured at an evaporator temperature of forty-five degrees Fahrenheit and a condenser temperature of one hundred thirty degrees Fahrenheit.

• Includes 1-3/4 inch Rotolock suction connection and 1-1/4 inch Rotolock discharge connection
• Features a 3/8 inch NPT oil equalization connection
• Motor operates at three thousand five hundred RPM

Product Highlights

This compressor is used in various air conditioning and refrigeration applications. It is designed to efficiently handle mineral oil as well.

Product Information

Standard Information

• Brand: Danfoss
• MPN: MT56-4VI
• Model: MT56HL4AVE

Technical Specifications

• Application: Air Conditioning, Refrigeration
• Refrigerant Rating: R22
• BTU Rating: 56420 BTU
• Connection Size: 1-3/4 x 7/8 inch
• Compressor Connection: ODF
• Motor RPM: 3500 RPM
• Motor Phase: 3 Phase
• Motor Voltage: 460V
