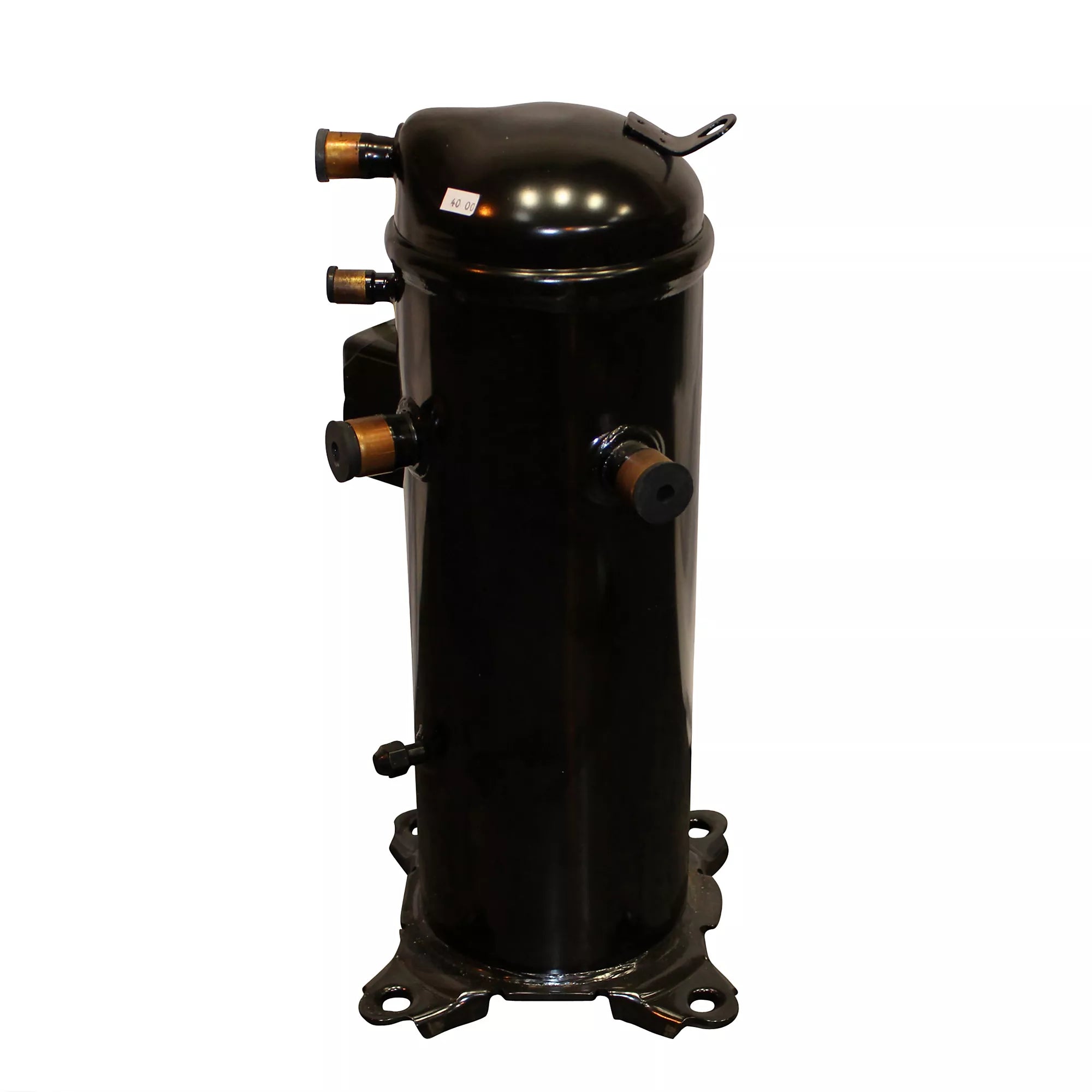

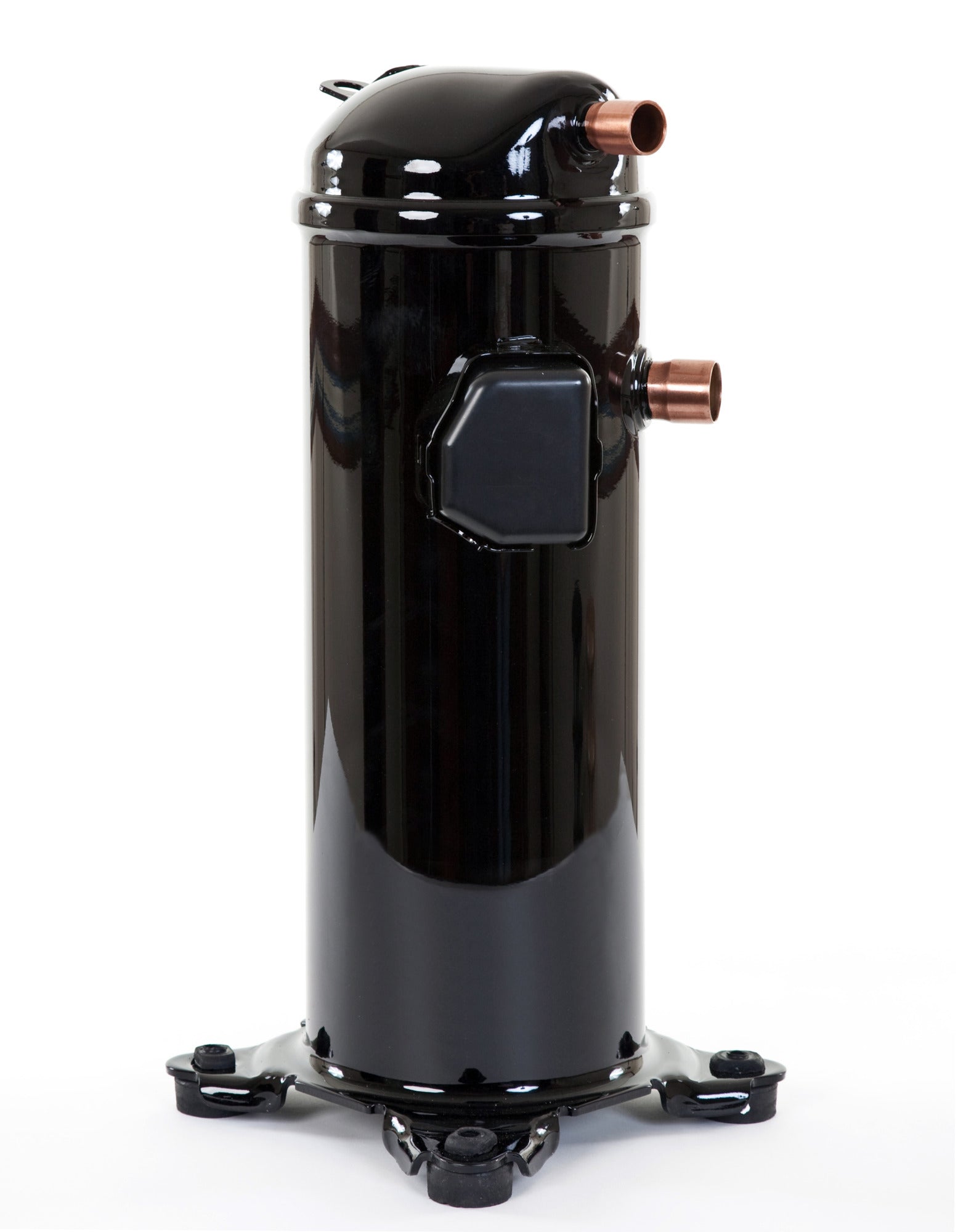

Danfoss HRH054U1LP6 Scroll 54,000 BTU (4.5 Ton) 121L1301/120U1301

Product Description

Danfoss HRH054U1LP6 is a Danfoss scroll compressor with a 54,000 BTU (4.5 ton) cooling capacity. It is a hermetic, fixed-speed single-phase unit rated 208-230 V, 60 Hz, designed for R-410A refrigerant and supplied with PVE oil (initial charge 53 oz / 1.57 L). The compressor has brazed 7/8 in suction and 1/2 in discharge connections and internal overload motor protection for air conditioning and HVAC applications.

• Scroll hermetic design; fixed-speed single-phase operation at 208-230 V, 60 Hz
• 54,000 BTU capacity for R-410A refrigerant; PVE oil initial charge 53 oz (1.57 L)
• Brazed suction 7/8 in OD and discharge 1/2 in OD connections; internal overload protector; LRA 145 A / RLA 29 A

Product Highlights

54,000 BTU R-410A hermetic scroll compressor, 208-230 V single-phase, brazed 7/8" x 1/2" connections, PVE oil charge

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: HRH054U1LP6
• Country of Origin: USA

Technical Specifications

• Brand: Danfoss
• Manufacturer Part Number: HRH054U1LP6
• Model Number: HRH054U1LP6
• Compressor Type: Scroll (hermetic)
• Capacity: 54,000 BTU (4.5 ton)
• Refrigerant: R-410A
• Input Voltage: 208-230 V AC
• Phase: Single
• Frequency: 60 Hz
• Power Supply: 208-230 V / 1 / 60 Hz
• Capacity Control: Fixed speed
• Oil Type: Polyvinyl Ether (PVE) (reference 320HV)
• Initial Oil Charge: 53 oz (1.57 L)
• Suction Connection Size (OD): 7/8 in
• Discharge Connection Size (OD): 1/2 in
• Connection Type: Brazed (suction fitting may be sweat or braze)
• Internal Motor Protection: Internal overload protector
• Running Load Amps (RLA): 29 A
• Locked Rotor Amps (LRA): 145 A
• Maximum Current (MCC): 45 A
• Rotational Speed (60 Hz): 3500 rpm
• Maximum Starts Per Hour: 12
• IP Protection Class: IP22
• Approvals: CE, UL, UKCA
• Total Height (mm): 455 mm
• Diameter (mm): 184 mm
• Net Weight: 40.95 kg (90.3 lb)
• Gross Weight: 43.32 kg (95.5 lb)
• GTIN / EAN: 5702428205535
• Recommended Replacement MPN: 121L1301 / 120U1301
• Oil Reference: 320HV
• Refrigerant Charge Max: 5.44 kg
• Max Pressure High Side: 46.10 bar
• Max Pressure Low Side: 31.10 bar
• Power Connections: Spade
• Mounting Type: M-PAK / mounting kit included (per documentation)
