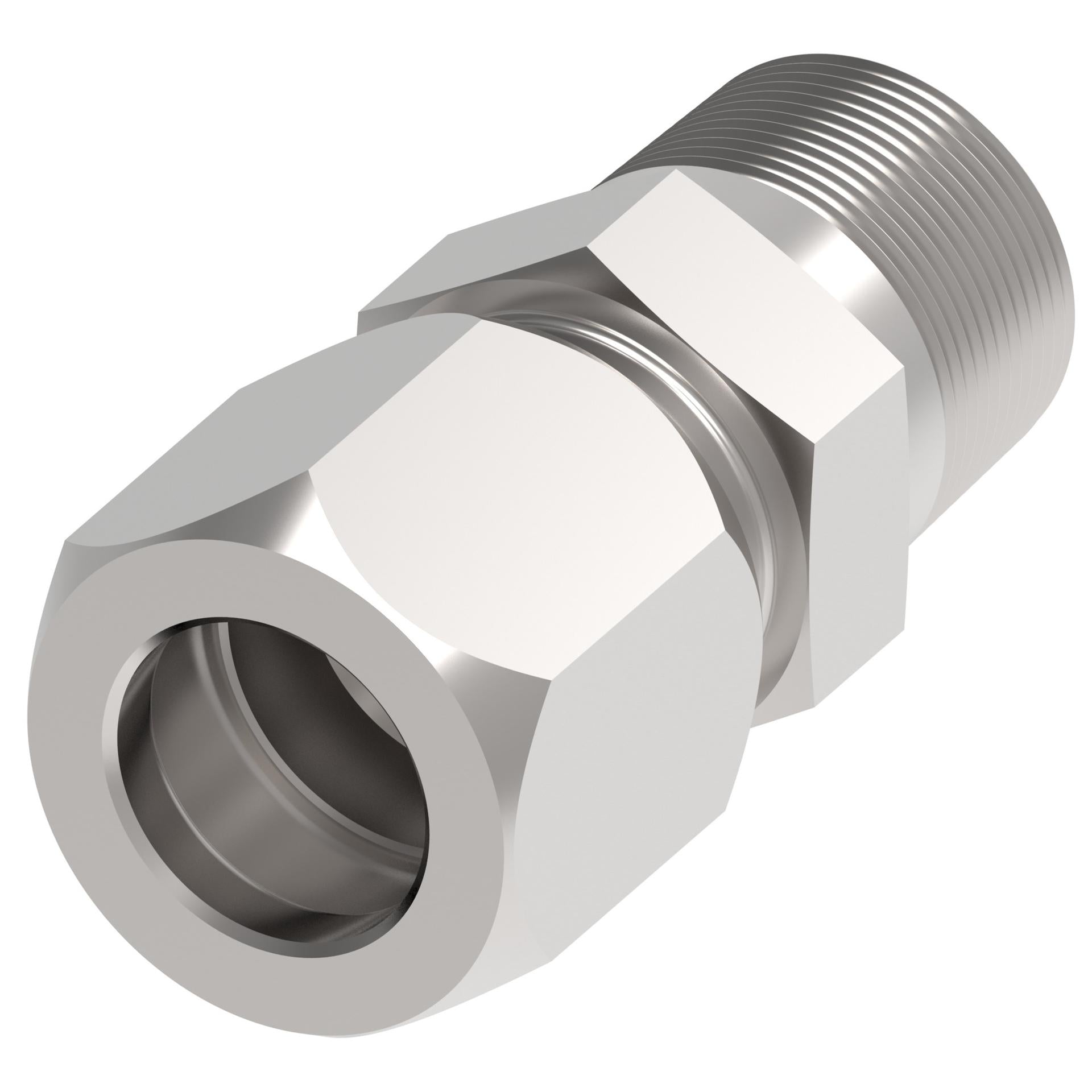

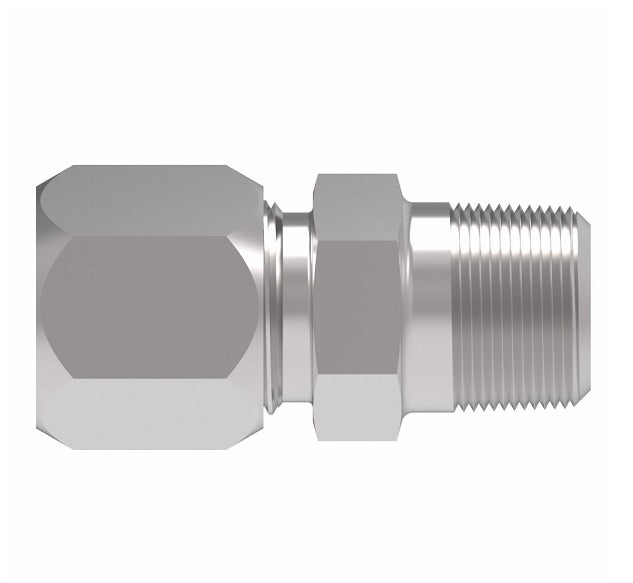

Danfoss 7205X16 Ermeto Male Connector 1 IN

Product Description

The DANFOSS 7205X16 Ermeto male connector is designed for leak-proof tube connections and withstands high pressure and vibration. It is suited for hydraulic, instrumentation, and chemical processing applications. Features Dura-Kote plating for superior corrosion resistance and design flexibility.

• Dura-Kote plating for superior corrosion resistance
• Design flexibility with hundreds of styles to choose from
• Higher operating pressures above SAE standards

Product Highlights

This Ermeto fitting is designed for high-pressure applications and offers excellent vibration resistance within hydraulic, instrumentation, and chemical processing systems.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 7205X16

Technical Specifications

• MPN: 7205X16
• Brand: DANFOSS
• Angle shape: Straight
• Application: Hydraulic, instrumentation, and chemical processing. Highly recommended for high pressure and high vibration applications.
• Certifications: SAE 080102
• End gender 1: Male
• End size 1: 1 IN
• End Size 2: 1 IN
• End type 1: NPTF
• End Type 2: Line/Hose/Tube
• Finish plating: DURA-KOTE
• Hex size 1: 1.375 inch
• Hex size 2: 1.5 inch
• Inside diameter bore hole size: 0.875 inch
• Item type: NPTF Male Male to Hose/Pipe/Tube Female
• Part status: AC
• Product height: 1.50
• Product height uom: inch
• Product length: 2.56
• Product length uom: inch
• Product material: Carbon steel
• Product trade name: Ermeto
• Product weight: 0.62
• Product weight uom: pound
• Product width: 1.50
• Product width uom: inch
• Segment code: A
• Sub brand: None
• Thread sealant: No
• Thread size 1: 1-11 1/2
• Tube od 1: 0.937 inch
• Tube od 2: 1.018 inch
• Alternate Part Number: MINO-00925F66360
• Features: Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
• Shape: Straight
• Ends Configuration: 1in Male NPTF 1in Tube Compression
• Material(s): Steel
• EAN/UPC: 725975050965
