Product Description

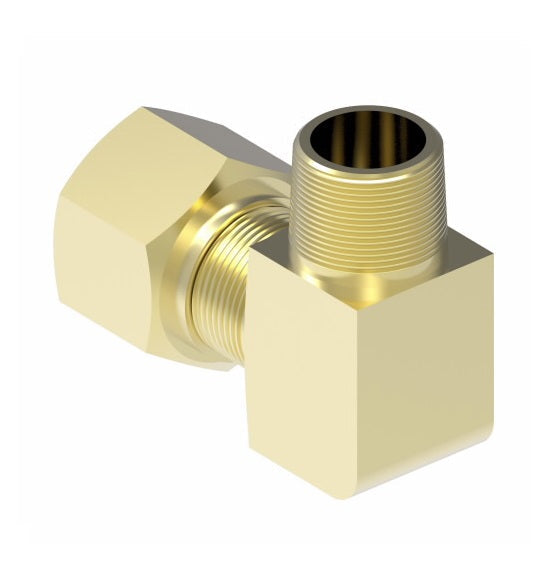

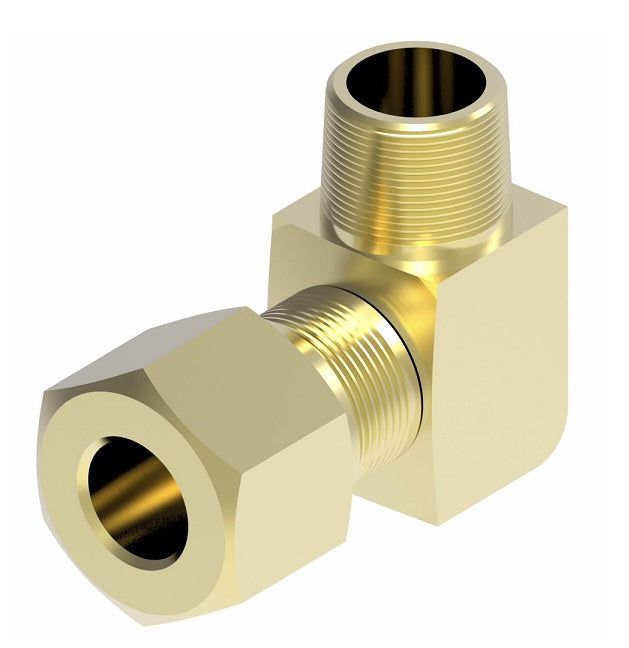

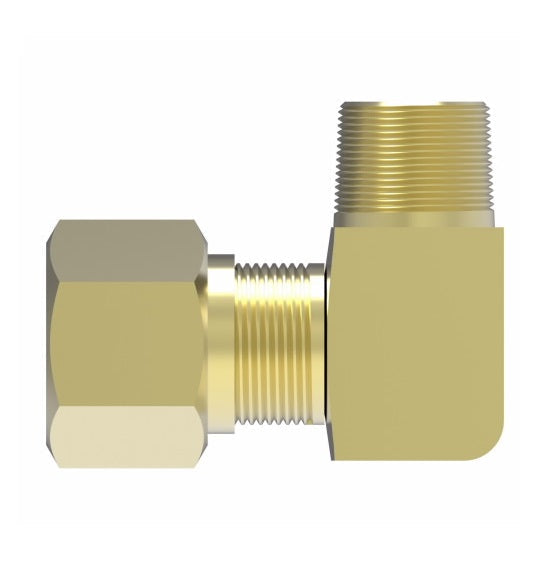

The Danfoss 1469X8X8 is an air brake adapter for nylon tubing. This male connector features a 90° elbow and is made of CA360 brass. It is designed for air brake systems, except where temperatures exceed +200°F or where battery acid can drip on tubing. Maximum operating pressure of 150 psi.
- Easy to assemble (no tube preparation or flaring required.)
- Built in tube support.
- May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
Product Highlights
The Danfoss 1469X8X8 air brake adapter is easy to assemble and provides reliable performance within air brake systems. It meets SAE and DOT FMVSS 571.106 standards.
Product Information
Standard Information
-
Brand: DANFOSS
-
Manufacturer Part Number: 1469X8X8
Technical Specifications
-
MPN: 1469X8X8
-
Brand: DANFOSS
-
Shape (Orientation): 90 Degree
-
Material(s): Brass
-
Compatible with the following Series: 3270 Series | 4247 Series | 4245 Series
-
Thread 1: 1/2-14
-
Tube O.D.: 0.5
-
Pressure Rating: 150 psi
-
Temperature Rating: -40 to 200 deg F
-
For Use With: Air Brake Tubing
-
Connection Type 1: Compression Nylon Tube
-
Connection Size 1: 1/2 in
-
Connection Type 2: MPT
-
Connection Size 2: 1/2-14
