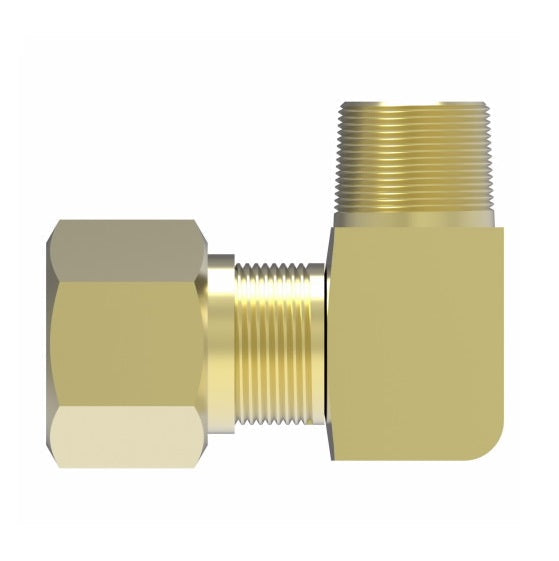

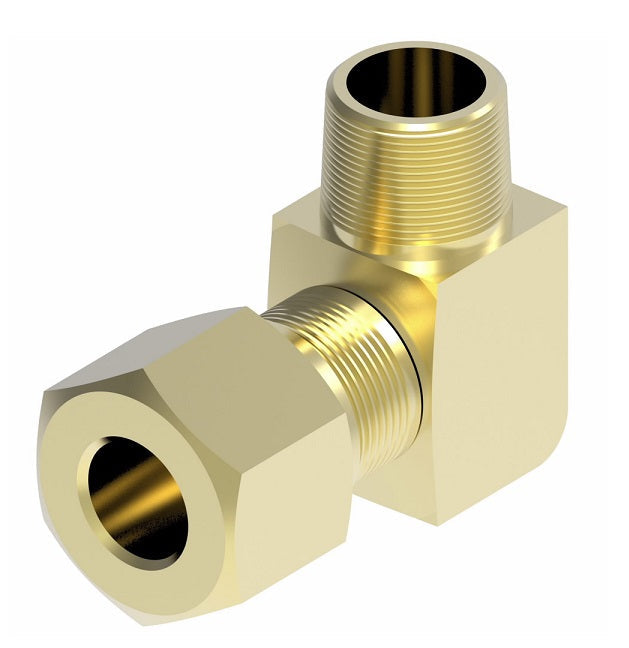

Danfoss 1469X10 air brake adapter male connector 90 degree elbow

Product Description

The Danfoss 1469X10 is an air brake adapter with MPN 1469X10. It is easy to assemble, requiring no tube preparation or flaring. This adapter has built-in tube support and offers fair vibration resistance. It can be used with copper tubing by replacing the nut, sleeve, and insert with a long nut and spherical sleeve.

• Easy to assemble (no tube preparation or flaring required.)
• Built in tube support.
• May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.

Product Highlights

Air brake adapter, easy to assemble, built-in tube support, fair vibration resistance, and compatible with copper tubing.

Product Information

Standard Information

• Brand: DANFOSS
• Manufacturer Part Number: 1469X10

Technical Specifications

• MPN: 1469X10
• Brand: DANFOSS
• Shape (Orientation): 90 Degree
• Material(s): Brass
• Compatible with the following Series: 3270 Series | 4247 Series | 4245 Series
• Pressure: Maximum operating pressure of 150 psi.
• Temperature Range: -40°F to +200°F (-40°C to +93°C)
• Conformance: Ref. SAE No. 100202BA Meets specifications and standards of SAE and DOT FMVSS 571.106.
